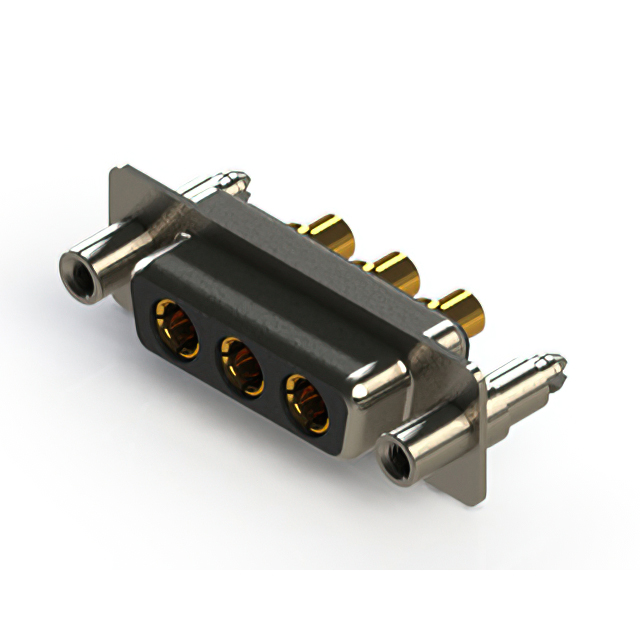

628-3W3-224-4TE

Active

EDAC Inc.

CONN D-SUB RCPT 3POS VERT SLDR

628-3W3-224-4TE

Active

EDAC Inc.

CONN D-SUB RCPT 3POS VERT SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

628-3W3 Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	628-3W3-224-4TE

Color	Black
Connector Layout	A, DA
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating	40 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Finish	Tin Plated
Flange Feature	Mating Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	3W3
Position Types	Power
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	125 V

628-3W3 Series

...

Part	Connector Style	Flange Feature	Shell Size	Connector Layout	Part Code	Number of Rows	Features	Contact Type	Finish	Shell Material	Mounting Type	Number of Positions	Position Types	Material Flammability Rating	Termination	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Finish	Connector Type	Dielectric Material	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Color	Current Rating
EDAC Inc. 628-3W3-224-7T4	Combo D-Sub	Board Side (4-40) Mating Side (4-40)	2	A DA	3W3	1	Shielded	Coax Signal	Tin Plated	Steel	Through Hole	3	Coax	UL94 V-0	Solder	0	Flash	Flash	Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black
EDAC Inc. 628-3W3-224-4TE	Combo D-Sub	Mating Side (M3)	2	A DA	3W3	1	Board Lock Shielded	Power Signal	Tin Plated	Steel	Through Hole	3	Power	UL94 V-0	Solder	0	Flash	Flash	Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black	40 A
EDAC Inc. 628-3W3-624-4TD	Combo D-Sub	Board Side (M3)	2	A DA	3W3	1	Board Lock Shielded	Power Signal	Tin Plated	Steel	Through Hole	3	Power	UL94 V-0	Solder	30 µin			Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black	40 A
EDAC Inc. 628-3W3-624-2N2	Combo D-Sub	Board Side (4-40)	2	A DA	3W3	1	Shielded	Power Signal	Nickel Plated	Steel	Through Hole	3	Power	UL94 V-0	Solder	30 µin			Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black	20 A
EDAC Inc. 628-3W3-224-5TA	Combo D-Sub	Board Side (M3)	2	A DA	3W3	1	Shielded	Coax Signal	Tin Plated	Steel	Through Hole	3	Coax	UL94 V-0	Solder	0	Flash	Flash	Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black
EDAC Inc. 628-3W3-624-4N5	Combo D-Sub	Board Side (4-40)	2	A DA	3W3	1	Board Lock Shielded	Power Signal	Nickel Plated	Steel	Through Hole	3	Power	UL94 V-0	Solder	30 µin			Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black	40 A
EDAC Inc. 628-3W3-224-7T2	Combo D-Sub	Board Side (4-40)	2	A DA	3W3	1	Shielded	Coax Signal	Tin Plated	Steel	Through Hole	3	Coax	UL94 V-0	Solder	0	Flash	Flash	Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black
EDAC Inc. 628-3W3-224-5NE	Combo D-Sub	Mating Side (M3)	2	A DA	3W3	1	Board Lock Shielded	Coax Signal	Nickel Plated	Steel	Through Hole	3	Coax	UL94 V-0	Solder	0	Flash	Flash	Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black
EDAC Inc. 628-3W3-622-2T1	Combo D-Sub	Housing Shell (Unthreaded)	2	A DA	3W3	1	Shielded	Power Signal	Tin Plated	Steel	Free Hanging (In-Line)	3	Power	UL94 V-0	Solder Cup	30 µin			Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black	20 A
EDAC Inc. 628-3W3-224-5N6	Combo D-Sub	Mating Side (4-40)	2	A DA	3W3	1	Board Lock Shielded	Coax Signal	Nickel Plated	Steel	Through Hole	3	Coax	UL94 V-0	Solder	0	Flash	Flash	Gold	Female Sockets Receptacle	Polyester Thermoplastic	125 V	125 °C	-55 °C	Copper Alloy	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

628-3W3-224-4TE | Datasheet
