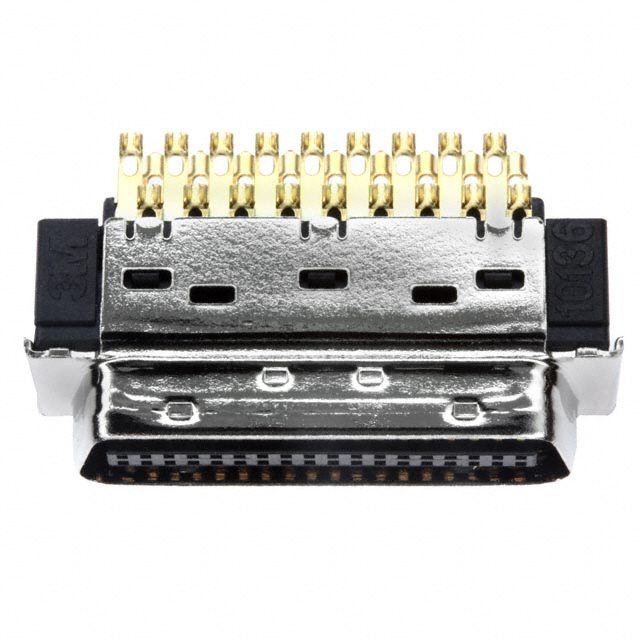

CONN PLUG 36POS STR SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
10136-3000PE
Active3M
CONN PLUG 36POS STR SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10136-3000PE | 10136 Series |
|---|---|---|
| - | - | |
| Connector Style | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.51 µm | 0.51 - 0.76 Ám |
| Contact Finish Thickness | 20 µin | 20 - 30 Áin |
| Features | Shielded | Shielded, Board Lock |
| Flange Feature | - | M2.5, Housing/Shell |
| Flange Feature | - | 2.6 M |
| Mounting Type | Free Hanging (In-Line) | Through Hole, Right Angle, Panel Mount, Free Hanging (In-Line) |
| Number of Positions | 36 | 36 |
| Number of Rows | 2 | 2 |
| Termination | - | Solder |
| Type | - | Board to Board |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.73 | |
| 10 | $ 11.28 | |||
| 25 | $ 10.85 | |||
| 40 | $ 10.42 | |||
| 100 | $ 9.84 | |||
| 300 | $ 8.97 | |||
| 500 | $ 8.39 | |||
| 1000 | $ 7.70 | |||
10136 Series
JE150344768 10136-5212PC=36/MDR/RC/RA/PLUG/SCWLK/30MIN
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Features | Connector Type | Flange Feature | Number of Positions | Contact Finish | Number of Rows | Connector Style | Type | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panel Mount, Right Angle, Through Hole | 0.76 Ám | 30 Áin | Solder | Shielded | Plug | M2.5 | 36 | Gold | 2 | Center Strip Contacts | |||
Panel Mount, Right Angle, Through Hole | 0.76 Ám | 30 Áin | Solder | Board Lock, Shielded | Plug | Housing/Shell | 36 | Gold | 2 | Center Strip Contacts | Board to Board | 2.6 M | |
Free Hanging (In-Line) | 0.51 µm | 20 µin | Shielded | Plug | 36 | Gold | 2 | Center Strip Contacts | |||||
Panel Mount, Right Angle, Through Hole | 0.76 Ám | 30 Áin | Solder | Board Lock, Shielded | Plug | Housing/Shell | 36 | Gold | 2 | Center Strip Contacts | 2.6 M | ||
Panel Mount, Right Angle, Through Hole | 0.76 Ám | 30 Áin | Solder | Shielded | Plug | M2.5 | 36 | Gold | 2 | Center Strip Contacts |
Description
General part information
10136 Series
36 Position Plug Connector Free Hanging (In-Line) Solder Cup
