10136-5212PC

Active

JE150344768 10136-5212PC=36/MDR/RC/RA/PLUG/SCWLK/30MIN

Search across all available documentation for this part.

Active

JE150344768 10136-5212PC=36/MDR/RC/RA/PLUG/SCWLK/30MIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10136-5212PC	10136 Series

Connector Style	-	Center Strip Contacts
Connector Type	-	Plug
Contact Finish	-	Gold
Contact Finish Thickness	-	0.51 - 0.76 Ám
Contact Finish Thickness	-	20 - 30 Áin
Features	-	Shielded, Board Lock
Flange Feature	-	M2.5, Housing/Shell
Flange Feature	-	2.6 M
Mounting Type	-	Through Hole, Right Angle, Panel Mount, Free Hanging (In-Line)
null		-
Number of Positions	-	36
Number of Rows	-	2
Termination	-	Solder
Type	-	Board to Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

JE150344768 10136-5212PC=36/MDR/RC/RA/PLUG/SCWLK/30MIN

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Features	Connector Type	Flange Feature	Number of Positions	Contact Finish	Number of Rows	Connector Style	Type	Flange Feature
3M 10136-5212PC
3M 10136-7212VC	Panel Mount, Right Angle, Through Hole	0.76 Ám	30 Áin	Solder	Shielded	Plug	M2.5	36	Gold	2	Center Strip Contacts
3M 10136-6000EL
3M 10136-52B2VC	Panel Mount, Right Angle, Through Hole	0.76 Ám	30 Áin	Solder	Board Lock, Shielded	Plug	Housing/Shell	36	Gold	2	Center Strip Contacts	Board to Board	2.6 M
3M 10136-3000PE	Free Hanging (In-Line)	0.51 µm	20 µin		Shielded	Plug		36	Gold	2	Center Strip Contacts
3M 10136-6000EL
3M 10136-72B2VC	Panel Mount, Right Angle, Through Hole	0.76 Ám	30 Áin	Solder	Board Lock, Shielded	Plug	Housing/Shell	36	Gold	2	Center Strip Contacts		2.6 M
3M 10136-5212PC	Panel Mount, Right Angle, Through Hole	0.76 Ám	30 Áin	Solder	Shielded	Plug	M2.5	36	Gold	2	Center Strip Contacts

General part information

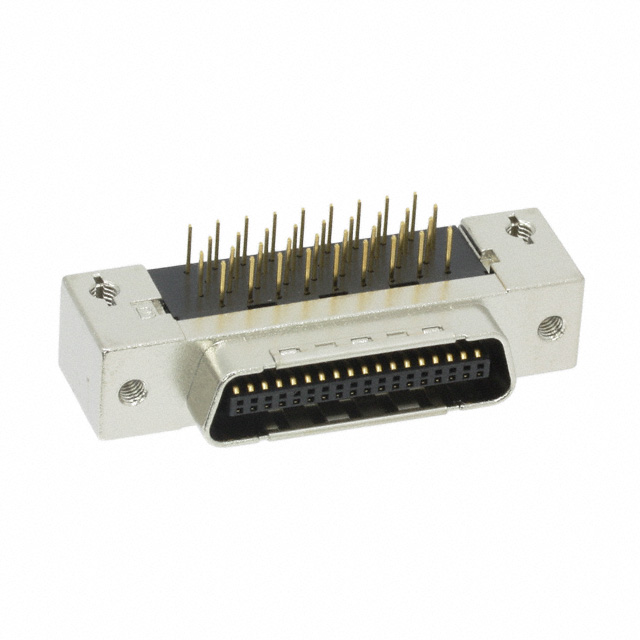

36 Position Plug Connector Panel Mount, Through Hole, Right Angle Solder
