1-796403-2

Active

TE Connectivity Raychem Cable Protection

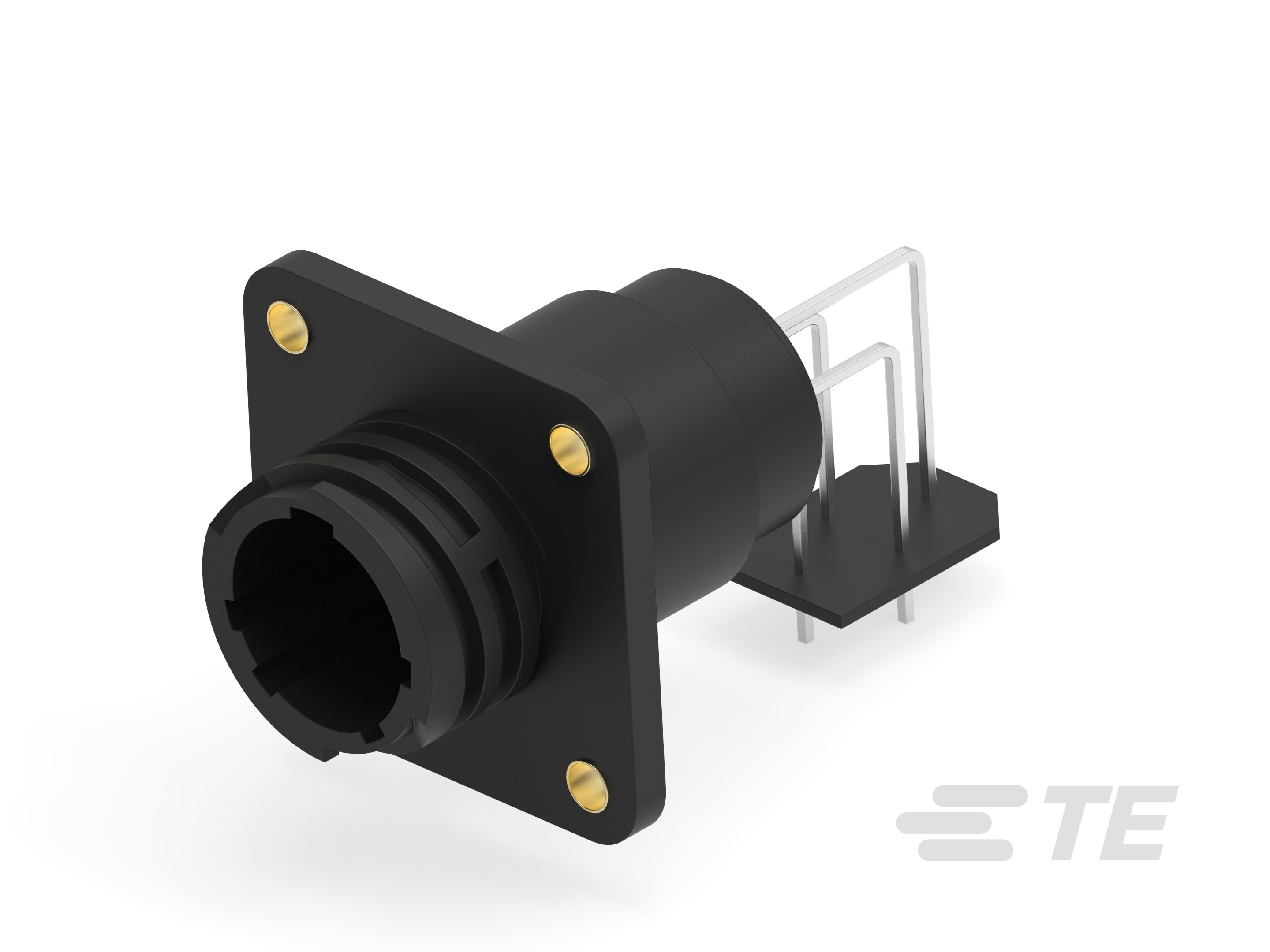

CIRCULAR CONNECTOR, CPC SERIES 1, RIGHT ANGLE PANEL MOUNT RECEPTACLE, 4 CONTACTS, PCB PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN

1-796403-2

Active

TE Connectivity Raychem Cable Protection

CIRCULAR CONNECTOR, CPC SERIES 1, RIGHT ANGLE PANEL MOUNT RECEPTACLE, 4 CONTACTS, PCB PIN

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-796403-2

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Brass
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	11-4
Termination	Solder
Voltage Rating	250 VAC

Circular Plastic Connectors Series 1 Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Type	Contact Finish	Contact Material	Pin or Socket	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Number of Positions	Termination	Mounting Feature	Connector Type	Mounting Type	Contact Finish - Mating	Orientation	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Material Flammability Rating	Contact Shape	Contact Size	Housing Color	Features	Contact Type	Note	Insert Material	Shielding	Ingress Protection	Shell Material
TE Connectivity Raychem Cable Protection 2-66105-0	20 AWG	24 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin	Brass	Socket
TE Connectivity Raychem Cable Protection 1-66564-2	20 AWG	24 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin	Brass	Pin
TE Connectivity Raychem Cable Protection 211401-5
TE Connectivity Raychem Cable Protection 66098-1	16 AWG	18 AWG	30 Áin	0.76 Ám	Crimp	Stamped	Gold PdNi +Gold	Brass	Pin
TE Connectivity Raychem Cable Protection 1-66564-3	20 AWG	24 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin	Brass	Pin
TE Connectivity Raychem Cable Protection 66428-4	26 AWG	30 AWG	30 Áin	0.76 Ám	Crimp	Stamped	Gold PdNi +Gold	Brass	Socket
TE Connectivity Raychem Cable Protection 1-796403-2								Brass		30 Áin	0.76 Ám	Plastic	4	Solder	Flange	Male Pins Receptacle	Panel Mount Right Angle Through Hole	Gold	A	250 VAC	105 ░C	-55 °C	11-4	UL94 V-0
TE Connectivity Raychem Cable Protection 796450-1						For Male Pins							9			Plug Housing	Free Hanging (In-Line)		B		105 ░C	-55 °C	17-9	UL94 V-0	Circular	16	Black	Coupling Nut	Crimp	Contacts Not Included	Thermoplastic	Unshielded
TE Connectivity Raychem Cable Protection 788154-2						For Female Sockets							4		Flange	Receptacle Housing			Keyed		105 ░C	-55 °C	11-4	UL94 V-0	Circular	16	Black	Backshell	Crimp	Contacts Not Included	Thermoplastic	Unshielded	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6 Glass Filled
TE Connectivity Raychem Cable Protection 211401-3						For Male Pins							7		Flange	Receptacle Housing			A		105 ░C	-55 °C	13-7	UL94 V-0	Circular	16	Black		Crimp	Contacts Not Included	Thermoplastic	Unshielded	Environment Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 27.45
		16	$ 25.57

Description

General part information

Circular Plastic Connectors Series 1 Series

4 Position Circular Connector Receptacle, Male Pins Solder

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
