211401-3

Active

TE Connectivity Raychem Cable Protection

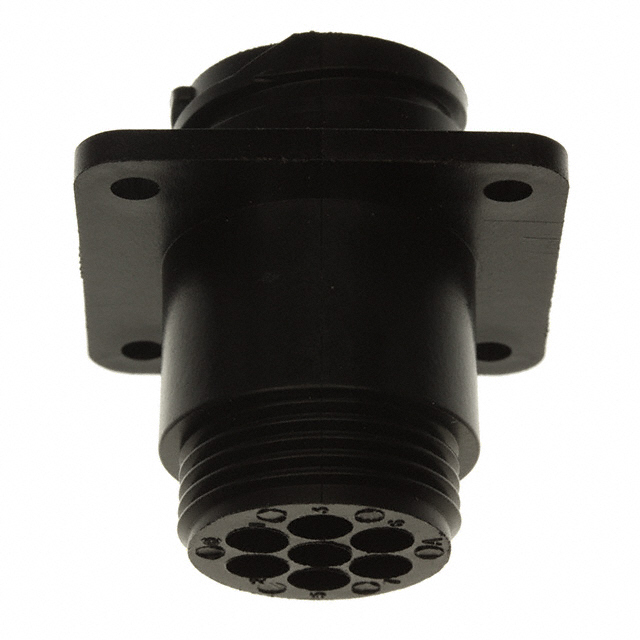

CONN RCPT HSNG MALE 7POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

211401-3

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSNG MALE 7POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	211401-3

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Housing Color	Black
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Shell Size - Insert	13-7
Shielding	Unshielded
Type	For Male Pins

Circular Plastic Connectors Series 1 Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Type	Contact Finish	Contact Material	Pin or Socket	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Number of Positions	Termination	Mounting Feature	Connector Type	Mounting Type	Contact Finish - Mating	Orientation	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Material Flammability Rating	Contact Shape	Contact Size	Housing Color	Features	Contact Type	Note	Insert Material	Shielding	Ingress Protection	Shell Material
TE Connectivity Raychem Cable Protection 2-66105-0	20 AWG	24 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin	Brass	Socket
TE Connectivity Raychem Cable Protection 1-66564-2	20 AWG	24 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin	Brass	Pin
TE Connectivity Raychem Cable Protection 211401-5
TE Connectivity Raychem Cable Protection 66098-1	16 AWG	18 AWG	30 Áin	0.76 Ám	Crimp	Stamped	Gold PdNi +Gold	Brass	Pin
TE Connectivity Raychem Cable Protection 1-66564-3	20 AWG	24 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin	Brass	Pin
TE Connectivity Raychem Cable Protection 66428-4	26 AWG	30 AWG	30 Áin	0.76 Ám	Crimp	Stamped	Gold PdNi +Gold	Brass	Socket
TE Connectivity Raychem Cable Protection 1-796403-2								Brass		30 Áin	0.76 Ám	Plastic	4	Solder	Flange	Male Pins Receptacle	Panel Mount Right Angle Through Hole	Gold	A	250 VAC	105 ░C	-55 °C	11-4	UL94 V-0
TE Connectivity Raychem Cable Protection 796450-1						For Male Pins							9			Plug Housing	Free Hanging (In-Line)		B		105 ░C	-55 °C	17-9	UL94 V-0	Circular	16	Black	Coupling Nut	Crimp	Contacts Not Included	Thermoplastic	Unshielded
TE Connectivity Raychem Cable Protection 788154-2						For Female Sockets							4		Flange	Receptacle Housing			Keyed		105 ░C	-55 °C	11-4	UL94 V-0	Circular	16	Black	Backshell	Crimp	Contacts Not Included	Thermoplastic	Unshielded	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6 Glass Filled
TE Connectivity Raychem Cable Protection 211401-3						For Male Pins							7		Flange	Receptacle Housing			A		105 ░C	-55 °C	13-7	UL94 V-0	Circular	16	Black		Crimp	Contacts Not Included	Thermoplastic	Unshielded	Environment Resistant
