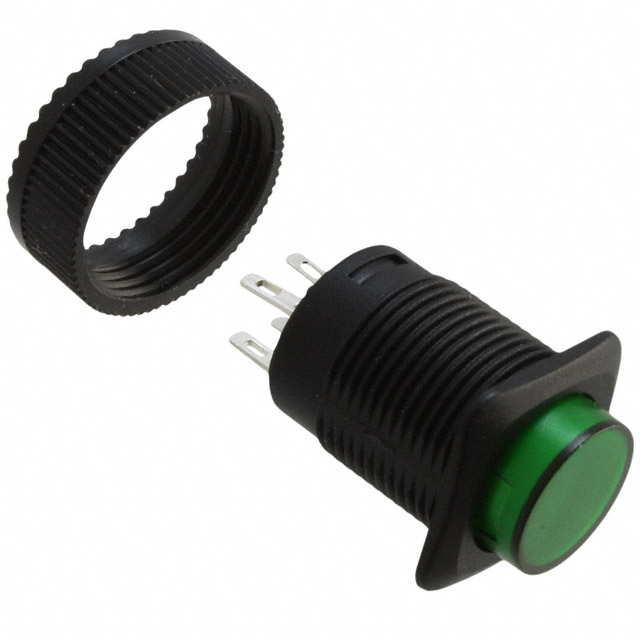

RP3508BBLKGRNGRNNS

Active

E-Switch

SWITCH PUSHBUTTON SPST 3A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPST 3A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RP3508BBLKGRNGRNNS

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Green
Current Rating (Amps)	3 A
Electrical Life	6000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.2 VDC
Mechanical Life	20000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-On
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V

Part	Mounting Type	Voltage Rating - AC	Actuator Type	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Switch Function	Type	Circuit	Mechanical Life	Current Rating (Amps)	Illumination Type, Color	Electrical Life	Termination Style	Actuator Marking	Illumination Voltage (Nominal)
E-Switch RP3508BBLKCLRREDGRNNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Clear	Off-On	Illuminated Standard	SPST	20000 Cycles	3 A	Green/Red LED	6000 Cycles	Solder Lug	No Marking	2.1 VDC 2.3 VDC
E-Switch RP3508ABLKREDREDNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Red	Off-Mom	Illuminated Standard	SPST-NO	20000 Cycles	3 A	LED Red	6000 Cycles	Solder Lug	No Marking	1.8 VDC
E-Switch RP3508ABLKYELYELNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Yellow	Off-Mom	Illuminated Standard	SPST-NO	20000 Cycles	3 A	LED Yellow	6000 Cycles	Solder Lug	No Marking	2.2 VDC
E-Switch RP3508BBLKREDREDNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Red	Off-On	Illuminated Standard	SPST	20000 Cycles	3 A	LED Red	6000 Cycles	Solder Lug	No Marking	1.8 VDC
E-Switch RP3508BBLKGRNGRNNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Green	Off-On	Illuminated Standard	SPST	20000 Cycles	3 A	Green LED	6000 Cycles	Solder Lug	No Marking	2.2 VDC
E-Switch RP3508ABLKREDNNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Red	Off-Mom	Standard	SPST-NO	20000 Cycles	3 A		6000 Cycles	Solder Lug	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Standard, Illuminated Panel Mount, Front
