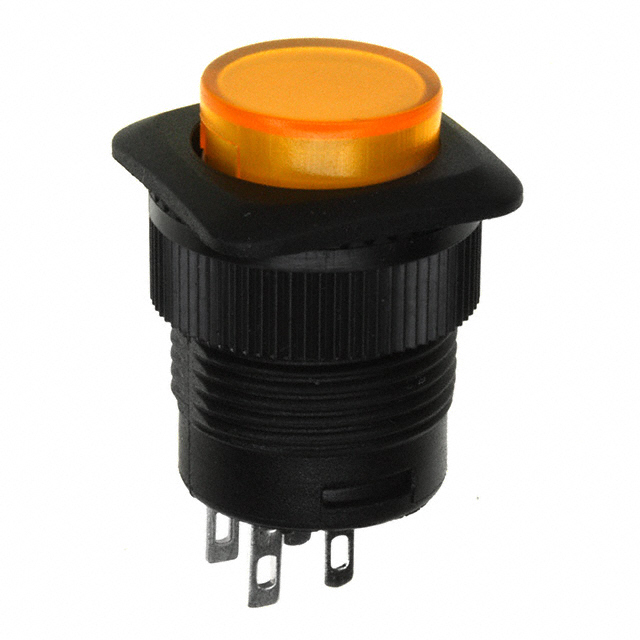

RP3508ABLKYELYELNS

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPST; 1.5A/250VAC; YELLOW; PANEL

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPST; 1.5A/250VAC; YELLOW; PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	RP3508ABLKYELYELNS

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Yellow
Current Rating (Amps)	3 A
Electrical Life	6000 Cycles
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	2.2 VDC
Mechanical Life	20000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V

Part	Mounting Type	Voltage Rating - AC	Actuator Type	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Switch Function	Type	Circuit	Mechanical Life	Current Rating (Amps)	Illumination Type, Color	Electrical Life	Termination Style	Actuator Marking	Illumination Voltage (Nominal)
E-Switch RP3508BBLKCLRREDGRNNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Clear	Off-On	Illuminated Standard	SPST	20000 Cycles	3 A	Green/Red LED	6000 Cycles	Solder Lug	No Marking	2.1 VDC 2.3 VDC
E-Switch RP3508ABLKREDREDNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Red	Off-Mom	Illuminated Standard	SPST-NO	20000 Cycles	3 A	LED Red	6000 Cycles	Solder Lug	No Marking	1.8 VDC
E-Switch RP3508ABLKYELYELNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Yellow	Off-Mom	Illuminated Standard	SPST-NO	20000 Cycles	3 A	LED Yellow	6000 Cycles	Solder Lug	No Marking	2.2 VDC
E-Switch RP3508BBLKREDREDNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Red	Off-On	Illuminated Standard	SPST	20000 Cycles	3 A	LED Red	6000 Cycles	Solder Lug	No Marking	1.8 VDC
E-Switch RP3508BBLKGRNGRNNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Green	Off-On	Illuminated Standard	SPST	20000 Cycles	3 A	Green LED	6000 Cycles	Solder Lug	No Marking	2.2 VDC
E-Switch RP3508ABLKREDNNS	Panel Mount Front	125 V	Button Round	65 °C	16 mm	Red	Off-Mom	Standard	SPST-NO	20000 Cycles	3 A		6000 Cycles	Solder Lug	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
