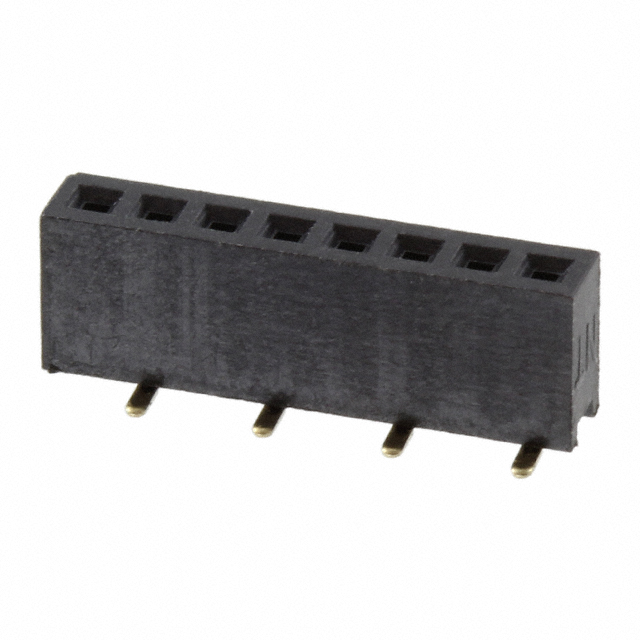

8 POS. FEMALE SIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M50-3140845
ActiveHarwin Inc.
8 POS. FEMALE SIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3140845 |
|---|---|
| Applications | General Purpose, Medical, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Mating | 0.3 µm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.134 in |
| Insulation Height | 3.4 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Termination | Solder |
| Voltage Rating | 500 VAC |
M50-314 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Insulation Color | Number of Positions Loaded | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Rows | Mounting Type | Material Flammability Rating | Features | Insulation Material | Termination | Voltage Rating | Contact Material | Contact Type | Contact Shape | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Connector Type | Applications | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | -40 °C | 105 ░C | Tin | Black | All | Push-Pull | 0.05 in | 1.27 mm | 1 | Surface Mount | UL94 V-0 | Pick and Place | Nylon 6T Polyamide (PA6T) | Solder | 500 VAC | Phosphor Bronze | Female Socket | Square | 0.134 in | 3.4 mm | 12 µin | 0.3 µm | 4 | Receptacle | General Purpose Medical Telecommunications | Gold |
Harwin Inc. | -40 °C | 105 ░C | Tin | Black | All | Push-Pull | 0.05 in | 1.27 mm | 1 | Surface Mount | UL94 V-0 | Pick and Place | Nylon 6T Polyamide (PA6T) | Solder | 500 VAC | Phosphor Bronze | Female Socket | Square | 0.134 in | 3.4 mm | 12 µin | 0.3 µm | 6 | Receptacle | General Purpose Medical Telecommunications | Gold |
Harwin Inc. | -40 °C | 105 ░C | Tin | Black | All | Push-Pull | 0.05 in | 1.27 mm | 1 | Surface Mount | UL94 V-0 | Pick and Place | Nylon 6T Polyamide (PA6T) | Solder | 500 VAC | Phosphor Bronze | Female Socket | Square | 0.134 in | 3.4 mm | 12 µin | 0.3 µm | 2 | Receptacle | General Purpose Medical Telecommunications | Gold |
Harwin Inc. | -40 °C | 105 ░C | Tin | Black | All | Push-Pull | 0.05 in | 1.27 mm | 1 | Surface Mount | UL94 V-0 | Pick and Place | Nylon 6T Polyamide (PA6T) | Solder | 500 VAC | Phosphor Bronze | Female Socket | Square | 0.134 in | 3.4 mm | 12 µin | 0.3 µm | 20 | Receptacle | General Purpose Medical Telecommunications | Gold |
Harwin Inc. | -40 °C | 105 ░C | Tin | Black | All | Push-Pull | 0.05 in | 1.27 mm | 1 | Surface Mount | UL94 V-0 | Nylon 6T Polyamide (PA6T) | Solder | 500 VAC | Phosphor Bronze | Female Socket | Square | 0.134 in | 3.4 mm | 12 µin | 0.3 µm | 2 | Receptacle | General Purpose Medical Telecommunications | Gold | |
Harwin Inc. | -40 °C | 105 ░C | Tin | Black | All | Push-Pull | 0.05 in | 1.27 mm | 1 | Surface Mount | UL94 V-0 | Nylon 6T Polyamide (PA6T) | Solder | 500 VAC | Phosphor Bronze | Female Socket | Square | 0.134 in | 3.4 mm | 12 µin | 0.3 µm | 8 | Receptacle | General Purpose Medical Telecommunications | Gold | |
Harwin Inc. | -40 °C | 105 ░C | Tin | Black | All | Push-Pull | 0.05 in | 1.27 mm | 1 | Surface Mount | UL94 V-0 | Pick and Place | Nylon 6T Polyamide (PA6T) | Solder | 500 VAC | Phosphor Bronze | Female Socket | Square | 0.134 in | 3.4 mm | 12 µin | 0.3 µm | 10 | Receptacle | General Purpose Medical Telecommunications | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M50-314 Series
8 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
