M50-3142045R

Active

Harwin Inc.

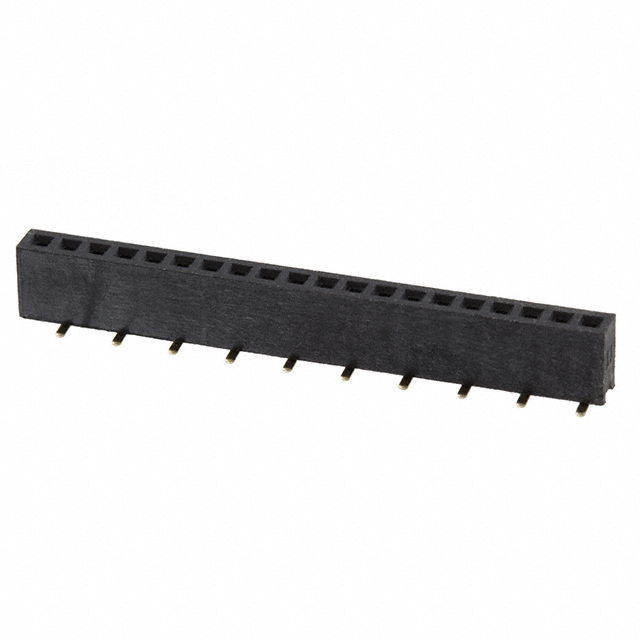

20 POS. FEMALE SIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-3000345 Datasheet +2

M50-3142045R

Active

Harwin Inc.

20 POS. FEMALE SIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50-3000345 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3142045R

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.134 in
Insulation Height	3.4 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder
Voltage Rating	500 VAC

M50-314 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Rows	Mounting Type	Material Flammability Rating	Features	Insulation Material	Termination	Voltage Rating	Contact Material	Contact Type	Contact Shape	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Connector Type	Applications	Contact Finish - Mating
Harwin Inc. M50-3140445R	-40 °C	105 ░C	Tin	Black	All	Push-Pull	0.05 in	1.27 mm	1	Surface Mount	UL94 V-0	Pick and Place	Nylon 6T Polyamide (PA6T)	Solder	500 VAC	Phosphor Bronze	Female Socket	Square	0.134 in	3.4 mm	12 µin	0.3 µm	4	Receptacle	General Purpose Medical Telecommunications	Gold
Harwin Inc. M50-3140645R	-40 °C	105 ░C	Tin	Black	All	Push-Pull	0.05 in	1.27 mm	1	Surface Mount	UL94 V-0	Pick and Place	Nylon 6T Polyamide (PA6T)	Solder	500 VAC	Phosphor Bronze	Female Socket	Square	0.134 in	3.4 mm	12 µin	0.3 µm	6	Receptacle	General Purpose Medical Telecommunications	Gold
Harwin Inc. M50-3140245R	-40 °C	105 ░C	Tin	Black	All	Push-Pull	0.05 in	1.27 mm	1	Surface Mount	UL94 V-0	Pick and Place	Nylon 6T Polyamide (PA6T)	Solder	500 VAC	Phosphor Bronze	Female Socket	Square	0.134 in	3.4 mm	12 µin	0.3 µm	2	Receptacle	General Purpose Medical Telecommunications	Gold
Harwin Inc. M50-3142045R	-40 °C	105 ░C	Tin	Black	All	Push-Pull	0.05 in	1.27 mm	1	Surface Mount	UL94 V-0	Pick and Place	Nylon 6T Polyamide (PA6T)	Solder	500 VAC	Phosphor Bronze	Female Socket	Square	0.134 in	3.4 mm	12 µin	0.3 µm	20	Receptacle	General Purpose Medical Telecommunications	Gold
Harwin Inc. M50-3140245	-40 °C	105 ░C	Tin	Black	All	Push-Pull	0.05 in	1.27 mm	1	Surface Mount	UL94 V-0		Nylon 6T Polyamide (PA6T)	Solder	500 VAC	Phosphor Bronze	Female Socket	Square	0.134 in	3.4 mm	12 µin	0.3 µm	2	Receptacle	General Purpose Medical Telecommunications	Gold
Harwin Inc. M50-3140845	-40 °C	105 ░C	Tin	Black	All	Push-Pull	0.05 in	1.27 mm	1	Surface Mount	UL94 V-0		Nylon 6T Polyamide (PA6T)	Solder	500 VAC	Phosphor Bronze	Female Socket	Square	0.134 in	3.4 mm	12 µin	0.3 µm	8	Receptacle	General Purpose Medical Telecommunications	Gold
Harwin Inc. M50-3141045R	-40 °C	105 ░C	Tin	Black	All	Push-Pull	0.05 in	1.27 mm	1	Surface Mount	UL94 V-0	Pick and Place	Nylon 6T Polyamide (PA6T)	Solder	500 VAC	Phosphor Bronze	Female Socket	Square	0.134 in	3.4 mm	12 µin	0.3 µm	10	Receptacle	General Purpose Medical Telecommunications	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.16
		10	$ 2.87
		100	$ 2.52
		500	$ 2.15
	Digi-Reel®	1	$ 3.16
		10	$ 2.87
		100	$ 2.52
		500	$ 2.15
	Tape & Reel (TR)	1000	$ 1.56
Newark	Each (Supplied on Full Reel)	1000	$ 2.12
		2000	$ 1.92
		4000	$ 1.85

Description

General part information

M50-314 Series

20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
