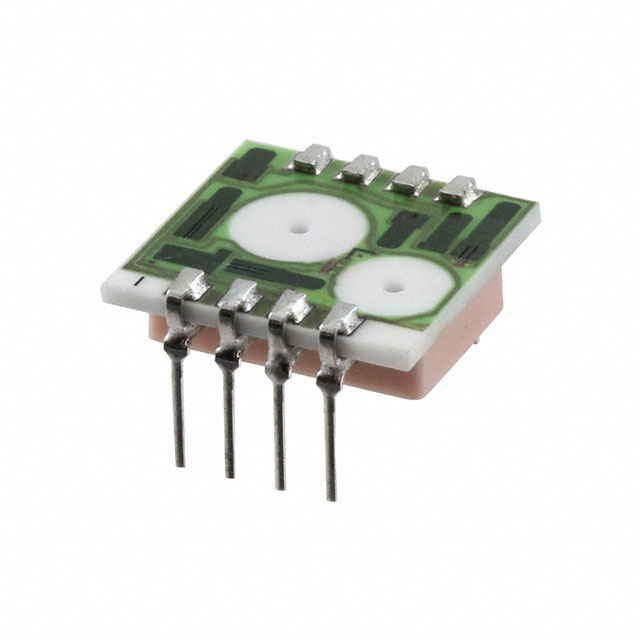

1220A-005G-3N

Obsolete

TE Connectivity Measurement Specialties

SENSOR 5PSIG .05V

Deep-Dive with AI

Search across all available documentation for this part.

1220A-005G-3N

Obsolete

TE Connectivity Measurement Specialties

SENSOR 5PSIG .05V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1220A-005G-3N	1220A Series

Accuracy	0.1 %	0.1 %
Applications	Board Mount	Board Mount
Features	Temperature Compensated	Temperature Compensated
Maximum Pressure	20 PSI	20 PSI
Maximum Pressure	137.9 kPa	137.9 kPa
Maximum Pressure	-	10 - 200 PSI
Maximum Pressure	-	68.95 - 1378.95 kPa
Mounting Type	Through Hole	Through Hole
Operating Pressure	34.47 kPa	34.47 - 689.48 kPa
Operating Pressure	5 PSI	5 - 100 PSI
Operating Pressure	-	13.79 kPa
Operating Pressure	-	2 PSI
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output [Max]	50 mV	50 mV
Output [Min]	0 mV	0 mV
Output Type	Wheatstone Bridge	Wheatstone Bridge
Package / Case	8-DIP Module	8-DIP Module
Port Size	-	Dual, Male, Tube
Port Size	-	3.23 mm
Port Size	-	0.13 "
Port Size	-	0.13 "
Port Size	-	3.18 mm
Port Style	No Port	Barbless, No Port
Pressure Type	Vented Gauge	Differential, Vented Gauge
Termination Style	PC Pin	PC Pin, PCB

1220A Series

SENSOR 5PSID 0.13" .05V

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Accuracy	Operating Pressure	Operating Pressure	Applications	Output [Max]	Package / Case	Mounting Type	Port Size	Port Size	Port Size	Output Type	Features	Port Style	Maximum Pressure	Maximum Pressure	Port Size [x]	Port Size [x]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [x]	Operating Pressure [x]
TE Connectivity Measurement Specialties 1220A-005D-3L	PC Pin	125 °C	-40 °C	Differential	0.1 %	34.47 kPa	5 PSI	Board Mount	50 mV	8-DIP Module	Through Hole	Dual, Male, Tube	3.23 mm	0.13 "	Wheatstone Bridge	Temperature Compensated	Barbless	20 PSI	137.9 kPa
TE Connectivity Measurement Specialties 1220A-002D-3S	PC Pin	125 °C	-40 °C	Differential				Board Mount	50 mV	8-DIP Module	Through Hole	Dual, Male, Tube			Wheatstone Bridge	Temperature Compensated	Barbless			0.13 "	3.18 mm	10 PSI	68.95 kPa	13.79 kPa	2 PSI
TE Connectivity Measurement Specialties 1220A-005G-3N	PC Pin	125 °C	-40 °C	Vented Gauge	0.1 %	34.47 kPa	5 PSI	Board Mount	50 mV	8-DIP Module	Through Hole				Wheatstone Bridge	Temperature Compensated	No Port	20 PSI	137.9 kPa
TE Connectivity Measurement Specialties 1220A-100D-3L	PCB	125 °C	-40 °C	Differential	0.1 %	689.48 kPa	100 PSI		50 mV	8-DIP Module	Through Hole	Dual, Male, Tube	3.23 mm	0.13 "	Wheatstone Bridge	Temperature Compensated	Barbless					200 PSI	1378.95 kPa
TE Connectivity Measurement Specialties 1220A-005D-3S	PC Pin	125 °C	-40 °C	Differential		34.47 kPa	5 PSI	Board Mount	50 mV	8-DIP Module	Through Hole	Dual, Male, Tube			Wheatstone Bridge	Temperature Compensated	Barbless	20 PSI	137.9 kPa	0.13 "	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1220A Series

Pressure Sensor 5PSI (34.47kPa) Vented Gauge 0 mV ~ 50 mV 8-DIP Module

Documents

Technical documentation and resources

No documents available
