1220A-002D-3S

Obsolete

TE Connectivity Measurement Specialties

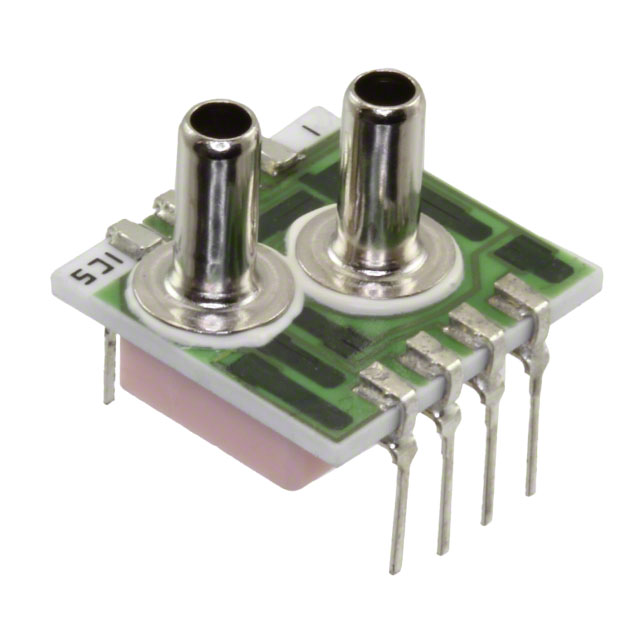

SENSOR 2PSID 0.13" .05V

Deep-Dive with AI

Search across all available documentation for this part.

1220A-002D-3S

Obsolete

TE Connectivity Measurement Specialties

SENSOR 2PSID 0.13" .05V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1220A-002D-3S	1220A Series

Accuracy	-	0.1 %
Applications	Board Mount	Board Mount
Features	Temperature Compensated	Temperature Compensated
Maximum Pressure	-	20 PSI
Maximum Pressure	-	137.9 kPa
Maximum Pressure [Max]	10 PSI	10 - 200 PSI
Maximum Pressure [Max]	68.95 kPa	68.95 - 1378.95 kPa
Mounting Type	Through Hole	Through Hole
Operating Pressure	-	34.47 - 689.48 kPa
Operating Pressure	-	5 - 100 PSI
Operating Pressure [x]	13.79 kPa	13.79 kPa
Operating Pressure [x]	2 PSI	2 PSI
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output [Max]	50 mV	50 mV
Output [Min]	0 mV	0 mV
Output Type	Wheatstone Bridge	Wheatstone Bridge
Package / Case	8-DIP Module	8-DIP Module
Port Size	Tube, Male, Dual	Dual, Male, Tube
Port Size	-	3.23 mm
Port Size	-	0.13 "
Port Size [x]	0.13 "	0.13 "
Port Size [x]	3.18 mm	3.18 mm
Port Style	Barbless	Barbless, No Port
Pressure Type	Differential	Differential, Vented Gauge
Termination Style	PC Pin	PC Pin, PCB

1220A Series

SENSOR 5PSID 0.13" .05V

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Accuracy	Operating Pressure	Operating Pressure	Applications	Output [Max]	Package / Case	Mounting Type	Port Size	Port Size	Port Size	Output Type	Features	Port Style	Maximum Pressure	Maximum Pressure	Port Size [x]	Port Size [x]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [x]	Operating Pressure [x]
TE Connectivity Measurement Specialties 1220A-005D-3L	PC Pin	125 °C	-40 °C	Differential	0.1 %	34.47 kPa	5 PSI	Board Mount	50 mV	8-DIP Module	Through Hole	Dual, Male, Tube	3.23 mm	0.13 "	Wheatstone Bridge	Temperature Compensated	Barbless	20 PSI	137.9 kPa
TE Connectivity Measurement Specialties 1220A-002D-3S	PC Pin	125 °C	-40 °C	Differential				Board Mount	50 mV	8-DIP Module	Through Hole	Dual, Male, Tube			Wheatstone Bridge	Temperature Compensated	Barbless			0.13 "	3.18 mm	10 PSI	68.95 kPa	13.79 kPa	2 PSI
TE Connectivity Measurement Specialties 1220A-005G-3N	PC Pin	125 °C	-40 °C	Vented Gauge	0.1 %	34.47 kPa	5 PSI	Board Mount	50 mV	8-DIP Module	Through Hole				Wheatstone Bridge	Temperature Compensated	No Port	20 PSI	137.9 kPa
TE Connectivity Measurement Specialties 1220A-100D-3L	PCB	125 °C	-40 °C	Differential	0.1 %	689.48 kPa	100 PSI		50 mV	8-DIP Module	Through Hole	Dual, Male, Tube	3.23 mm	0.13 "	Wheatstone Bridge	Temperature Compensated	Barbless					200 PSI	1378.95 kPa
TE Connectivity Measurement Specialties 1220A-005D-3S	PC Pin	125 °C	-40 °C	Differential		34.47 kPa	5 PSI	Board Mount	50 mV	8-DIP Module	Through Hole	Dual, Male, Tube			Wheatstone Bridge	Temperature Compensated	Barbless	20 PSI	137.9 kPa	0.13 "	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1220A Series

Pressure Sensor 2PSI (13.79kPa) Differential Male - 0.13" (3.18mm) Tube, Dual 0 mV ~ 50 mV 8-DIP Module
