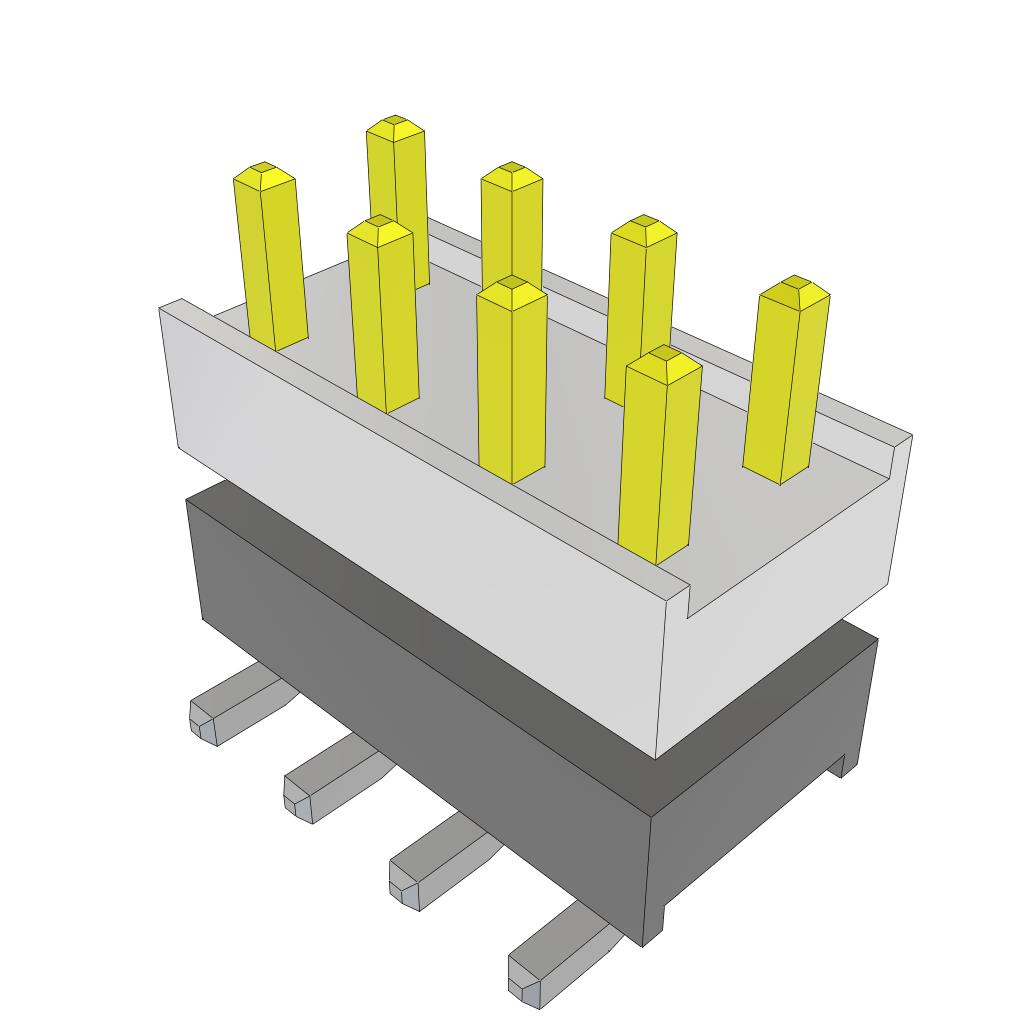

HW-04-16-F-D-290-SM

Active

Samtec Inc.

CONN HDR 8POS 0.1 STACK SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 8POS 0.1 STACK SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	HW-04-16-F-D-290-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	3 Áin
Contact Finish Thickness - Post (Mating)	0.076 Ám
Length - Overall Pin [x]	0.38 in
Length - Overall Pin [x]	9.65 mm
Length - Post (Mating) [x]	0.09 in
Length - Post (Mating) [x]	2.286 mm
Length - Stack Height [x]	7.366 mm
Length - Stack Height [x]	0.29 in
Mounting Type	Surface Mount
Number of Positions	8
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

Part	Length - Stack Height [x]	Length - Stack Height [x]	Color	Number of Rows	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]
Samtec Inc. HW-04-16-F-S-250-SM	0.25 in	6.35 mm	Black	1	Gold	3 Áin	0.076 Ám	4	2.54 mm	0.1 in	0.38 in	9.65 mm	Surface Mount	Solder	3.302 mm	0.13 in
Samtec Inc. HW-04-16-T-D-250-SM-A	0.25 in	6.35 mm	Black	2	Tin			8	2.54 mm	0.1 in	0.38 in	9.65 mm	Surface Mount	Solder	3.302 mm	0.13 in	0.1 in	2.54 mm
Samtec Inc. HW-04-16-T-S-275-SM	0.275 in	6.985 mm	Black	1	Tin			4	2.54 mm	0.1 in	0.38 in	9.65 mm	Surface Mount	Solder	2.667 mm	0.105 in
Samtec Inc. HW-04-16-F-D-290-SM	0.29 in	7.366 mm	Black	2	Gold	3 Áin	0.076 Ám	8	2.54 mm	0.1 in	0.38 in	9.65 mm	Surface Mount	Solder	2.286 mm	0.09 in	0.1 in	2.54 mm
Samtec Inc. HW-04-16-F-D-250-SM	0.25 in	6.35 mm	Black	2	Gold	3 Áin	0.076 Ám	8	2.54 mm	0.1 in	0.38 in	9.65 mm	Surface Mount	Solder	3.302 mm	0.13 in	0.1 in	2.54 mm
Samtec Inc. HW-04-16-T-D-200-130			Black	2	Tin			8	2.54 mm	0.1 in	0.445 in	11.303 mm	Through Hole	Solder	2.921 mm	0.115 in	0.1 in	2.54 mm	3.302 mm	0.13 in
Samtec Inc. HW-04-16-L-S-290-SM	0.29 in	7.366 mm	Black	1	Gold	10 Áin	0.25 Ám	4	2.54 mm	0.1 in	0.38 in	9.65 mm	Surface Mount	Solder	2.286 mm	0.09 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.39
