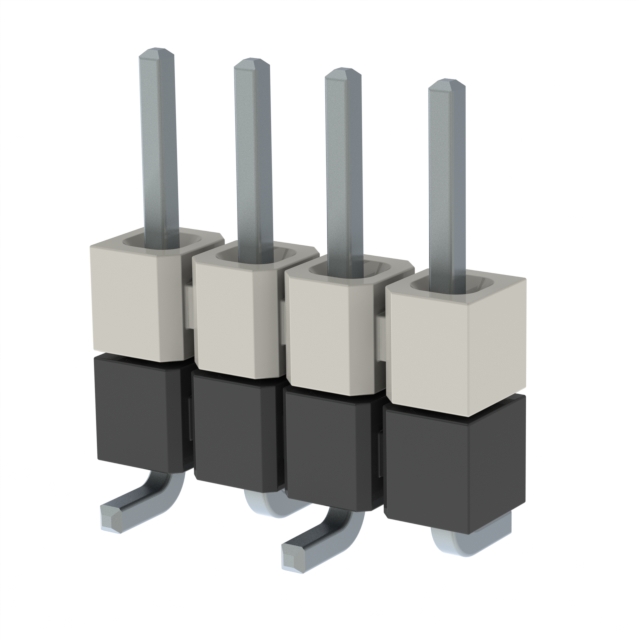

HW-04-16-T-S-275-SM
ActiveSamtec Inc.
CONN HDR 4POS 0.1 STACK SMD TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HW-04-16-T-S-275-SM
ActiveSamtec Inc.
CONN HDR 4POS 0.1 STACK SMD TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HW-04-16-T-S-275-SM |
|---|---|
| Color | Black |
| Contact Finish - Post (Mating) | Tin |
| Length - Overall Pin [x] | 0.38 in |
| Length - Overall Pin [x] | 9.65 mm |
| Length - Post (Mating) [x] | 0.105 in |
| Length - Post (Mating) [x] | 2.667 mm |
| Length - Stack Height [x] | 0.275 in |
| Length - Stack Height [x] | 6.985 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Termination | Solder |
HW-04-16 Series
| Part | Length - Stack Height [x] | Length - Stack Height [x] | Color | Number of Rows | Contact Finish - Post (Mating) | Contact Finish Thickness - Post (Mating) | Contact Finish Thickness - Post (Mating) | Number of Positions | Pitch [x] | Pitch [x] | Length - Overall Pin [x] | Length - Overall Pin [x] | Mounting Type | Termination | Length - Post (Mating) [x] | Length - Post (Mating) [x] | Row Spacing [x] | Row Spacing | Length - Tail [x] | Length - Tail [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 0.25 in | 6.35 mm | Black | 1 | Gold | 3 Áin | 0.076 Ám | 4 | 2.54 mm | 0.1 in | 0.38 in | 9.65 mm | Surface Mount | Solder | 3.302 mm | 0.13 in | ||||
Samtec Inc. | 0.25 in | 6.35 mm | Black | 2 | Tin | 8 | 2.54 mm | 0.1 in | 0.38 in | 9.65 mm | Surface Mount | Solder | 3.302 mm | 0.13 in | 0.1 in | 2.54 mm | ||||
Samtec Inc. | 0.275 in | 6.985 mm | Black | 1 | Tin | 4 | 2.54 mm | 0.1 in | 0.38 in | 9.65 mm | Surface Mount | Solder | 2.667 mm | 0.105 in | ||||||
Samtec Inc. | 0.29 in | 7.366 mm | Black | 2 | Gold | 3 Áin | 0.076 Ám | 8 | 2.54 mm | 0.1 in | 0.38 in | 9.65 mm | Surface Mount | Solder | 2.286 mm | 0.09 in | 0.1 in | 2.54 mm | ||
Samtec Inc. | 0.25 in | 6.35 mm | Black | 2 | Gold | 3 Áin | 0.076 Ám | 8 | 2.54 mm | 0.1 in | 0.38 in | 9.65 mm | Surface Mount | Solder | 3.302 mm | 0.13 in | 0.1 in | 2.54 mm | ||
Samtec Inc. | Black | 2 | Tin | 8 | 2.54 mm | 0.1 in | 0.445 in | 11.303 mm | Through Hole | Solder | 2.921 mm | 0.115 in | 0.1 in | 2.54 mm | 3.302 mm | 0.13 in | ||||
Samtec Inc. | 0.29 in | 7.366 mm | Black | 1 | Gold | 10 Áin | 0.25 Ám | 4 | 2.54 mm | 0.1 in | 0.38 in | 9.65 mm | Surface Mount | Solder | 2.286 mm | 0.09 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.69 | |
Description
General part information
HW-04-16 Series
4 Position Header Spacer Connector 0.100" (2.54mm) Tin Surface Mount
