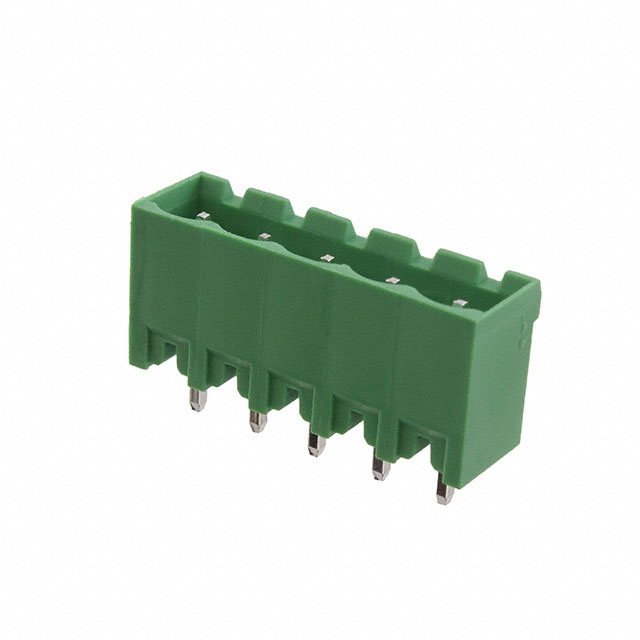

EBPA-05-D-C

Active

Adam Tech

EURO BLOCK 5P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 5P

Technical Specifications

Parameters and characteristics for this part

Specification	EBPA-05-D-C

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	Vertical
Insulation Height	0.472 in
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Contact Mating Finish	Pitch [x]	Pitch [x]	Voltage - UL	Header Orientation	Contact Tail Length	Contact Tail Length	Contact Material	Insulation Height	Insulation Height	Type	Material Flammability Rating	Positions Per Level	Termination Style	Color	Number of Positions	Mounting Type	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech EBPA-04-C	Tin	5 mm	0.197 in	300 V	Vertical	0.157 in	4 mm	Brass	0.472 in	12 mm	Header Male Pins Shrouded (2 Side)	UL94 V-0	4	Solder	Green	4	Through Hole	1	-40 °C	105 ░C
Adam Tech EBPA-05-C	Tin	5 mm	0.197 in	300 V	Vertical	0.157 in	4 mm	Brass	0.472 in	12 mm	Header Male Pins Shrouded (2 Side)	UL94 V-0	5	Solder	Green		Through Hole	1	-40 °C	105 ░C
Adam Tech EBPA-04-D-C	Tin	5.08 mm	0.2 in	300 V	Vertical	0.157 in	4 mm	Brass	0.472 in	12 mm	Header Male Pins Shrouded (4 Side)	UL94 V-0	4	Solder	Green	4	Through Hole	1	-40 °C	105 ░C
Adam Tech EBPA-05-D-C	Tin	5.08 mm	0.2 in	300 V	Vertical	0.157 in	4 mm	Brass	0.472 in	12 mm	Header Male Pins Shrouded (4 Side)	UL94 V-0	5	Solder	Green		Through Hole	1	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
