EBPA-04-C
ActiveAdam Tech
EURO BLOCK 4P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EBPA-04-C |
|---|---|
| Color | Green |
| Contact Material | Brass |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.157 in |
| Contact Tail Length | 4 mm |
| Header Orientation | Vertical |
| Insulation Height | 0.472 in |
| Insulation Height | 12 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (2 Side) |
| Voltage - UL | 300 V |
EBPA Series
| Part | Contact Mating Finish | Pitch [x] | Pitch [x] | Voltage - UL | Header Orientation | Contact Tail Length | Contact Tail Length | Contact Material | Insulation Height | Insulation Height | Type | Material Flammability Rating | Positions Per Level | Termination Style | Color | Number of Positions | Mounting Type | Number of Levels | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Tin | 5 mm | 0.197 in | 300 V | Vertical | 0.157 in | 4 mm | Brass | 0.472 in | 12 mm | Header Male Pins Shrouded (2 Side) | UL94 V-0 | 4 | Solder | Green | 4 | Through Hole | 1 | -40 °C | 105 ░C |
Adam Tech | Tin | 5 mm | 0.197 in | 300 V | Vertical | 0.157 in | 4 mm | Brass | 0.472 in | 12 mm | Header Male Pins Shrouded (2 Side) | UL94 V-0 | 5 | Solder | Green | Through Hole | 1 | -40 °C | 105 ░C | |
Adam Tech | Tin | 5.08 mm | 0.2 in | 300 V | Vertical | 0.157 in | 4 mm | Brass | 0.472 in | 12 mm | Header Male Pins Shrouded (4 Side) | UL94 V-0 | 4 | Solder | Green | 4 | Through Hole | 1 | -40 °C | 105 ░C |
Adam Tech | Tin | 5.08 mm | 0.2 in | 300 V | Vertical | 0.157 in | 4 mm | Brass | 0.472 in | 12 mm | Header Male Pins Shrouded (4 Side) | UL94 V-0 | 5 | Solder | Green | Through Hole | 1 | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.86 | |
| 10 | $ 0.42 | |||
| 25 | $ 0.34 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.19 | |||
| 5000 | $ 0.17 | |||
Description
General part information
EBPA Series

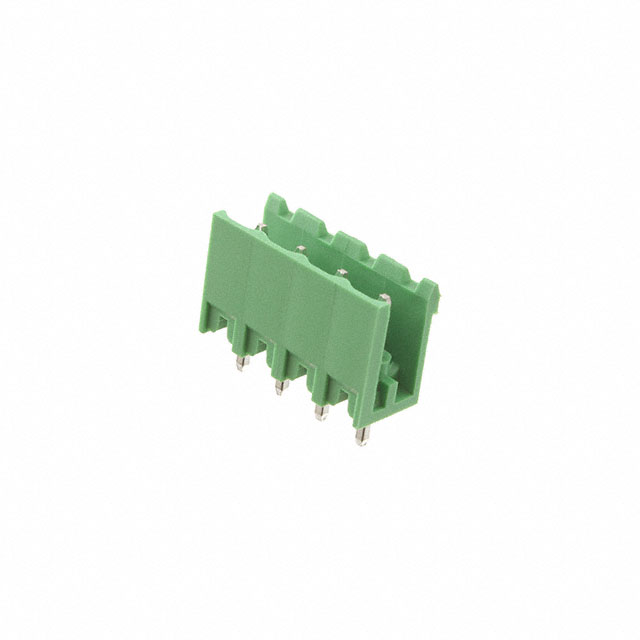

4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) Vertical Through Hole
