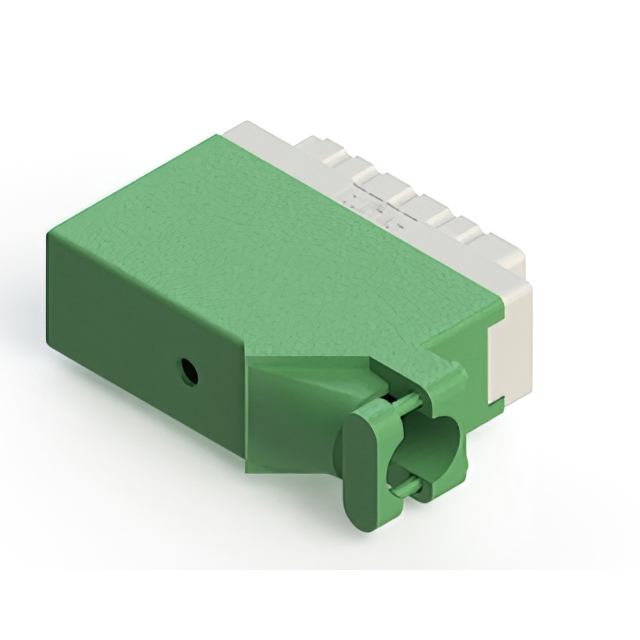

516-056-540-420

Active

EDAC Inc.

RACK & PANEL CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

516-056-540-420

Active

EDAC Inc.

RACK & PANEL CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	516-056-540-420

Color	Gray
Connector Style	Rack and Panel
Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Receptacle
Features	Backshell
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	56
Number of Rows	9
Pitch [x]	0.15 in
Pitch [x]	3.81 mm

516-056 Series

...

Part	Number of Positions	Note	Connector Style	Features	Pitch [x]	Pitch [x]	Color	Connector Usage	Mounting Type	Connector Type	Number of Rows
EDAC Inc. 516-056-540-420	56	Contacts Not Included	Rack and Panel	Backshell	0.15 in	3.81 mm	Gray	Receptacle	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9
EDAC Inc. 516-056-541-415	56	Contacts Not Included	Rack and Panel	Backshell Jackscrew	0.15 in	3.81 mm	Gray	Receptacle	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9
EDAC Inc. 516-056-000-352	56	Contacts Not Included	Rack and Panel	Backshell Guide Pin Jackscrew Socket	0.15 in	3.81 mm	Gray	Plug	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9
EDAC Inc. 516-056-542-151	56	Contacts Not Included	Rack and Panel	Backshell Guide Pin Jackscrew	0.15 in	3.81 mm	Green	Plug	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9
EDAC Inc. 516-056-520-255	56	Contacts Not Included	Rack and Panel	Backshell Jackscrew	0.15 in	3.81 mm	Green	Receptacle	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9
EDAC Inc. 516-056-500-226	56	Contacts Not Included	Rack and Panel	Backshell Jackscrew Socket	0.15 in	3.81 mm	Green	Receptacle	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9
EDAC Inc. 516-056-542-656	56	Contacts Not Included	Rack and Panel	Backshell Jackscrew Socket	0.15 in	3.81 mm	Green	Receptacle	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9
EDAC Inc. 516-056-542-150	56	Contacts Not Included	Rack and Panel	Backshell	0.15 in	3.81 mm	Green	Plug	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9
EDAC Inc. 516-056-520-641	56	Contacts Not Included	Rack and Panel	Backshell Jackscrew Mating Guide	0.15 in	3.81 mm	Green	Receptacle	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9
EDAC Inc. 516-056-541-160	56	Contacts Not Included	Rack and Panel	Backshell	0.15 in	3.81 mm	Green	Plug	Free Hanging (In-Line)	Housing for Non-Gendered Contacts	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 51.95
Newark	Each	1	$ 62.35
		100	$ 49.44
		250	$ 45.00
		500	$ 44.42
		1000	$ 40.28

Description

General part information

516-056 Series

56 Position Housing for Non-Gendered Contacts Connector Gray Free Hanging (In-Line) Rack and Panel
