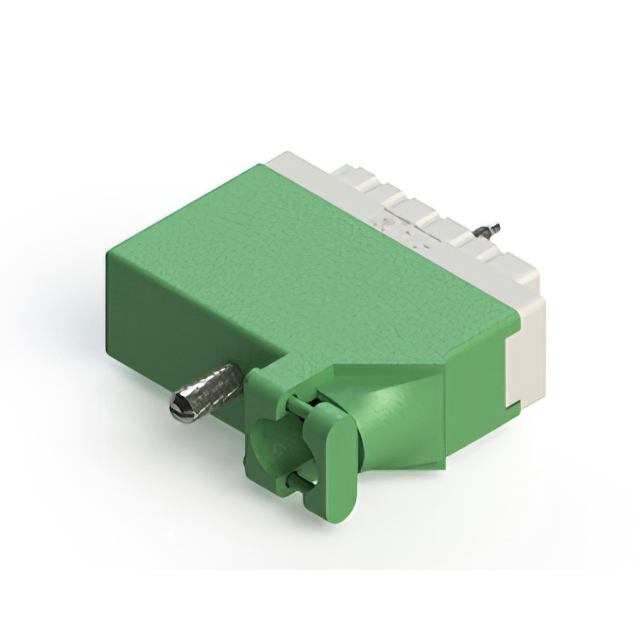

516-056-541-415
ActiveEDAC Inc.
516 SERIES RACK & PANEL CONNECTO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
516-056-541-415
ActiveEDAC Inc.
516 SERIES RACK & PANEL CONNECTO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 516-056-541-415 |
|---|---|
| Color | Gray |
| Connector Style | Rack and Panel |
| Connector Type | Housing for Non-Gendered Contacts |
| Connector Usage | Receptacle |
| Features | Jackscrew, Backshell |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 56 |
| Number of Rows | 9 |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
516-056 Series
...
| Part | Number of Positions | Note | Connector Style | Features | Pitch [x] | Pitch [x] | Color | Connector Usage | Mounting Type | Connector Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell | 0.15 in | 3.81 mm | Gray | Receptacle | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell Jackscrew | 0.15 in | 3.81 mm | Gray | Receptacle | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell Guide Pin Jackscrew Socket | 0.15 in | 3.81 mm | Gray | Plug | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell Guide Pin Jackscrew | 0.15 in | 3.81 mm | Green | Plug | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell Jackscrew | 0.15 in | 3.81 mm | Green | Receptacle | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell Jackscrew Socket | 0.15 in | 3.81 mm | Green | Receptacle | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell Jackscrew Socket | 0.15 in | 3.81 mm | Green | Receptacle | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell | 0.15 in | 3.81 mm | Green | Plug | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell Jackscrew Mating Guide | 0.15 in | 3.81 mm | Green | Receptacle | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
EDAC Inc. | 56 | Contacts Not Included | Rack and Panel | Backshell | 0.15 in | 3.81 mm | Green | Plug | Free Hanging (In-Line) | Housing for Non-Gendered Contacts | 9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 63.19 | |
Description
General part information
516-056 Series
56 Position Housing for Non-Gendered Contacts Connector Gray Free Hanging (In-Line) Rack and Panel
