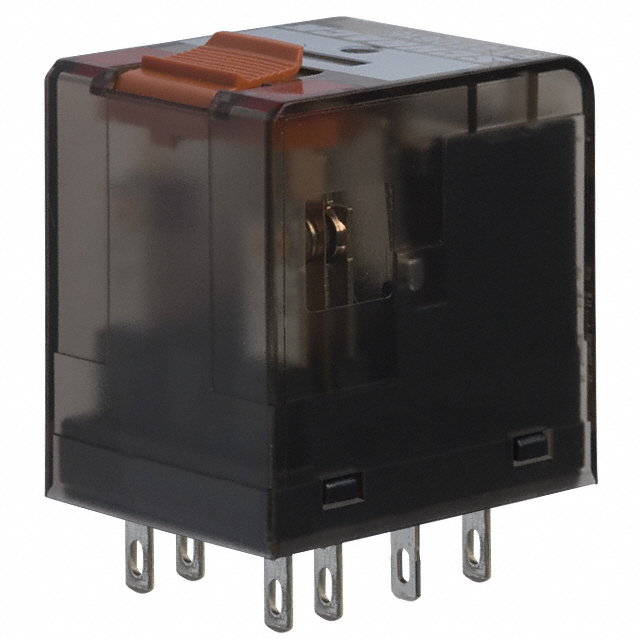

PT270048
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 12A 48V
Deep-Dive with AI
Search across all available documentation for this part.
PT270048
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 12A 48V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT270048 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 15.6 mA |
| Coil Insulation | Class F |
| Coil Resistance | 3.07 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 48 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching | 4800 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage [Max] | 400 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.04 | |
| 10 | $ 7.54 | |||
| 30 | $ 6.70 | |||
| 50 | $ 6.37 | |||
| 100 | $ 6.03 | |||
| 250 | $ 5.90 | |||
Description
General part information
PT270 Series
General Purpose Relay DPDT (2 Form C) 48VDC Coil Socketable
Documents
Technical documentation and resources
