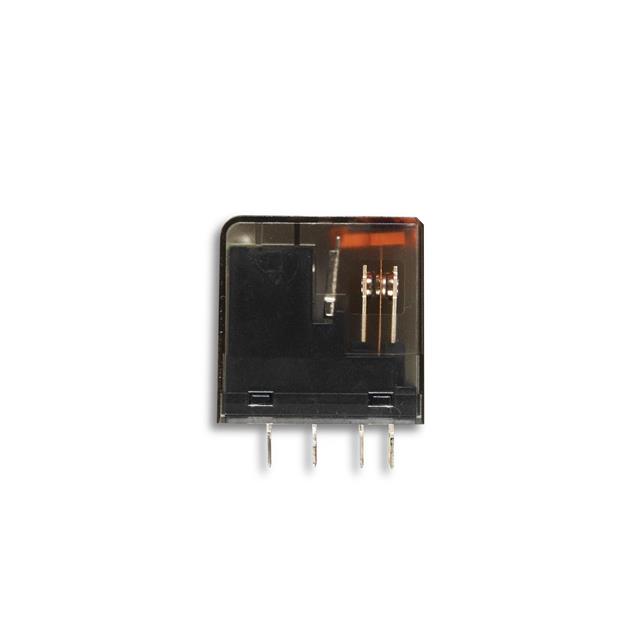

3-1415366-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-1415366-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-1415366-1

Approval Agency	cURus, VDE
Coil Current	62.5 mA
Coil Insulation	Class F
Coil Resistance	192 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Load - Max Switching	4800 VA
Mounting Type	Socketable
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	15 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage [Max]	400 VAC

PT270 Series

Part	Coil Resistance	Coil Insulation	Load - Max Switching	Mounting Type	Switching Voltage [Max]	Must Release Voltage	Contact Rating (Current)	Release Time	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Operate Time	Relay Type	Approval Agency	Must Operate Voltage	Contact Material	Contact Form	Coil Voltage	Termination Style
TE Connectivity Potter & Brumfield Relays PT270006	48 Ohms	Class F	4800 VA	Socketable	400 VAC	0.6 VDC	12 A	10 ms	125 mA	-40 °C	70 °C	Non Latching	15 ms	General Purpose	cURus VDE	4.5 VDC	Silver Nickel (AgNi)	DPDT (2 Form C)
TE Connectivity Potter & Brumfield Relays 2-1415039-1	4.85 kOhms	Class F	4800 VA	Socketable	400 VAC	34.5 VAC	12 A		23.7 mA	-40 °C	70 °C	Non Latching		General Purpose	cURus VDE	92 VAC	Silver Nickel (AgNi)	DPDT (2 Form C)	115 VAC
TE Connectivity Potter & Brumfield Relays PT270615	4.85 kOhms	Class F	4800 VA	Socketable	400 VAC	34.5 VAC	12 A		23.7 mA	-40 °C	70 °C	Non Latching		General Purpose	cURus VDE	92 VAC	Silver Nickel (AgNi)	DPDT (2 Form C)	115 VAC
TE Connectivity Potter & Brumfield Relays 3-1415366-1	192 Ohms	Class F	4800 VA	Socketable	400 VAC	1.2 VDC	12 A	10 ms	62.5 mA	-40 °C	70 °C	Non Latching	15 ms	General Purpose	cURus VDE	9 VDC	Silver Nickel (AgNi)	DPDT (2 Form C)	12 VDC
TE Connectivity Potter & Brumfield Relays PT270548	777 Ohms	Class F	4800 VA	Socketable	400 VAC	14.4 VAC	12 A		61.8 mA	-40 °C	70 °C	Non Latching		General Purpose	cURus VDE	38.4 VAC	Silver Nickel (AgNi)	DPDT (2 Form C)	48 VAC/DC
TE Connectivity Potter & Brumfield Relays PT270024	777 Ohms	Class F	4800 VA	Socketable	400 VAC	2.4 VDC	12 A	10 ms	30.8 mA	-40 °C	70 °C	Non Latching	15 ms	General Purpose	cURus VDE	18 VDC	Silver Nickel (AgNi)	DPDT (2 Form C)	24 VDC
TE Connectivity Potter & Brumfield Relays PT270048	3.07 kOhms	Class F	4800 VA	Socketable	400 VAC	4.8 VDC	12 A	10 ms	15.6 mA	-40 °C	70 °C	Non Latching	15 ms	General Purpose	cURus VDE	36 VDC	Silver Nickel (AgNi)	DPDT (2 Form C)	48 VDC
TE Connectivity Potter & Brumfield Relays 6-1415541-2		Class F	4800 VA	Socketable	400 VAC		12 A	10 ms				Non Latching	15 ms	General Purpose	cURus VDE		Silver Nickel (AgNi)	DPDT (2 Form C)		Plug In
TE Connectivity Potter & Brumfield Relays 6-1415541-1	192 Ohms	Class F	4800 VA	Socketable	400 VAC	1.2 VDC	12 A	10 ms	62.5 mA	-40 °C	70 °C	Non Latching	15 ms	General Purpose	cURus VDE	9 VDC	Silver Nickel (AgNi)	DPDT (2 Form C)	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 12.91

Description

General part information

PT270 Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
