6ES71346PA200CU0

Obsolete

Siemens

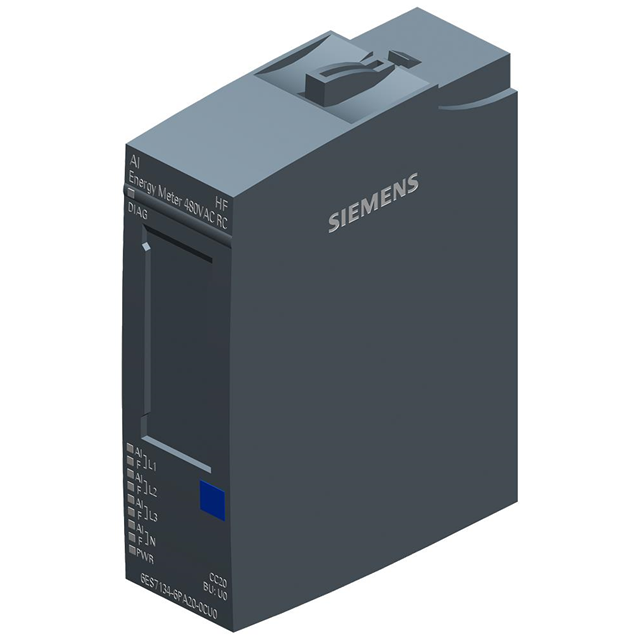

ET 200SP AI ENERGY METER 480V AC

Search across all available documentation for this part.

Obsolete

Siemens

ET 200SP AI ENERGY METER 480V AC

Technical Specifications

Parameters and characteristics for this part

Specification	6ES71346PA200CU0

For Use With/Related Products	SIMATIC ET 200SP
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Termination Style	Screw Terminal
Type	Input Module
Voltage - Supply [Max]	28.8 VDC
Voltage - Supply [Min]	19.2 V

Part	For Use With/Related Products	Voltage - Supply	Number of Inputs and Type	Mounting Type	Termination Style	Type	Number of Inputs and Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
Siemens 6ES71346JD000CA1	SIMATIC ET 200SP	24 VDC	4 - Analog	DIN Rail	Screw Terminal	Input Module
Siemens 6ES71346JF002CA1	SIMATIC ET 200SP		Analog	DIN Rail	Screw Terminal	Input Module	8	-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346GB000BA1	SIMATIC ET 200SP		Analog	DIN Rail	Screw Terminal	Input Module	2	-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346JD002CA1	SIMATIC ET 200SP		4 - Analog	DIN Rail	Screw Terminal	Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346JD000DA1	SIMATIC ET 200SP		4 - Analog	DIN Rail	Screw Terminal	Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346GD010BA1	SIMATIC ET 200SP		4 - Analog	Requires Basic Unit	Requires Basic Unit	Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346PA010BU0	SIMATIC ET 200SP	24 VDC		DIN Rail		Input Module		-30 ░C	60 °C
Siemens 6ES71346PA210CU0	SIMATIC ET 200SP			DIN Rail		Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346PA200CU0	SIMATIC ET 200SP			DIN Rail	Screw Terminal	Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346FB000BA1	SIMATIC ET 200SP		Analog	DIN Rail	Screw Terminal	Input Module	2	-30 ░C	60 °C	28.8 VDC	19.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Input Module DIN Rail 19.2 ~ 28.8VDC
