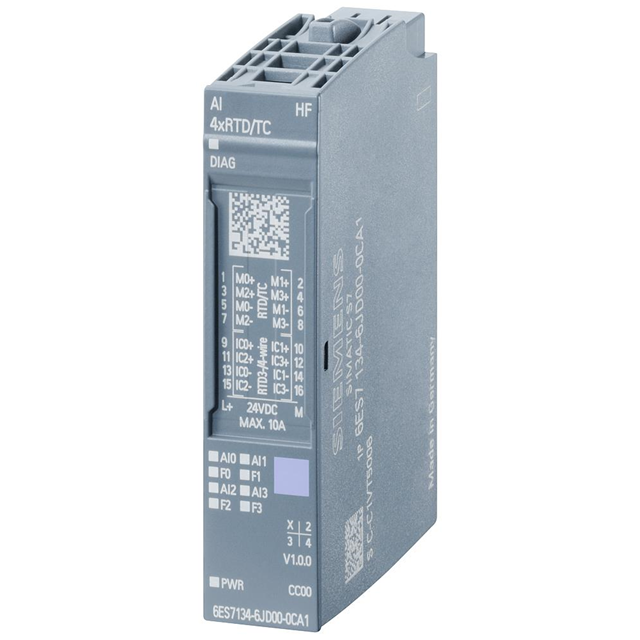

6ES71346JD000CA1

Active

Siemens

INPUT MODULE 4 ANALOG 24V

Search across all available documentation for this part.

Active

Siemens

INPUT MODULE 4 ANALOG 24V

Technical Specifications

Parameters and characteristics for this part

Specification	6ES71346JD000CA1

For Use With/Related Products	SIMATIC ET 200SP
Mounting Type	DIN Rail
Number of Inputs and Type	4 - Analog
Termination Style	Screw Terminal
Type	Input Module
Voltage - Supply	24 VDC

Part	For Use With/Related Products	Voltage - Supply	Number of Inputs and Type	Mounting Type	Termination Style	Type	Number of Inputs and Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
Siemens 6ES71346JD000CA1	SIMATIC ET 200SP	24 VDC	4 - Analog	DIN Rail	Screw Terminal	Input Module
Siemens 6ES71346JF002CA1	SIMATIC ET 200SP		Analog	DIN Rail	Screw Terminal	Input Module	8	-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346GB000BA1	SIMATIC ET 200SP		Analog	DIN Rail	Screw Terminal	Input Module	2	-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346JD002CA1	SIMATIC ET 200SP		4 - Analog	DIN Rail	Screw Terminal	Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346JD000DA1	SIMATIC ET 200SP		4 - Analog	DIN Rail	Screw Terminal	Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346GD010BA1	SIMATIC ET 200SP		4 - Analog	Requires Basic Unit	Requires Basic Unit	Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346PA010BU0	SIMATIC ET 200SP	24 VDC		DIN Rail		Input Module		-30 ░C	60 °C
Siemens 6ES71346PA210CU0	SIMATIC ET 200SP			DIN Rail		Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346PA200CU0	SIMATIC ET 200SP			DIN Rail	Screw Terminal	Input Module		-30 ░C	60 °C	28.8 VDC	19.2 V
Siemens 6ES71346FB000BA1	SIMATIC ET 200SP		Analog	DIN Rail	Screw Terminal	Input Module	2	-30 ░C	60 °C	28.8 VDC	19.2 V
