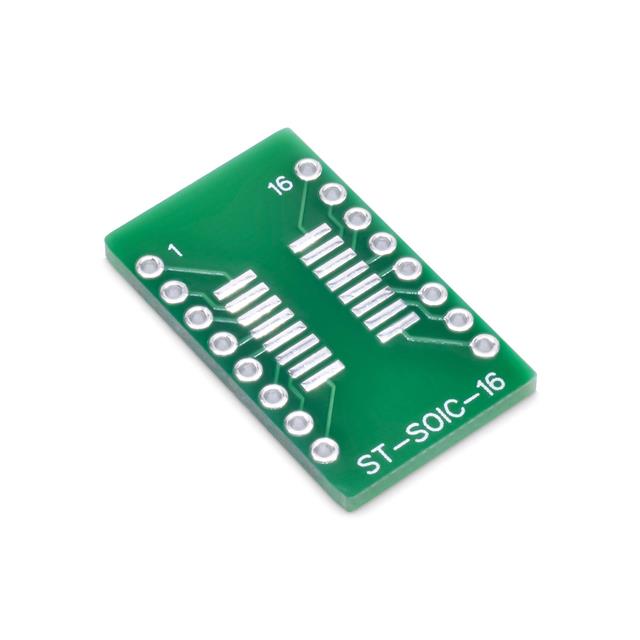

ST-SOIC-16

Active

SchmalzTech, LLC

SOIC-16 SMD TO DIP ADAPTER

Search across all available documentation for this part.

Active

SchmalzTech, LLC

SOIC-16 SMD TO DIP ADAPTER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SOIC-16 SMD TO DIP ADAPTER

Technical documentation and resources

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Positions	Proto Board Type	Package Accepted	Pitch [x]	Pitch [x]	Material	Board Thickness	Board Thickness	Number of Positions
SchmalzTech, LLC ST-SOIC-24	1.4 in	0.8 in	35.56 mm	20.32 mm	24	SMD to DIP	SOIC	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in
SchmalzTech, LLC ST-SOIC-16	1 in	0.6 in	25.4 mm	15.24 mm		SMD to DIP	SOIC	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in	16
SchmalzTech, LLC ST-SOIC-28	1.6 "	0.8 in	40.64 mm	20.32 mm	28	SMD to DIP	SOIC	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in
