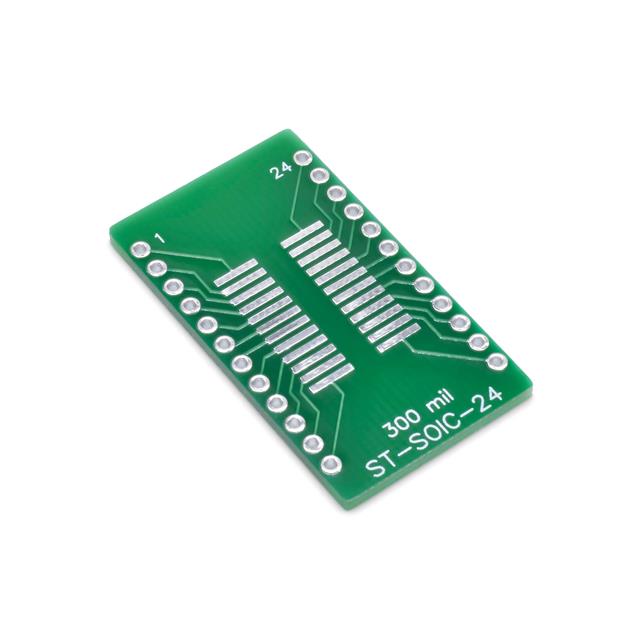

ST-SOIC-24

Active

SchmalzTech, LLC

SOIC-24 SMD TO DIP ADAPTER

Search across all available documentation for this part.

Active

SchmalzTech, LLC

SOIC-24 SMD TO DIP ADAPTER

Technical Specifications

Parameters and characteristics commom to parts in this series

SOIC-24 SMD TO DIP ADAPTER

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Positions	Proto Board Type	Package Accepted	Pitch [x]	Pitch [x]	Material	Board Thickness	Board Thickness	Number of Positions
SchmalzTech, LLC ST-SOIC-24	1.4 in	0.8 in	35.56 mm	20.32 mm	24	SMD to DIP	SOIC	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in
SchmalzTech, LLC ST-SOIC-16	1 in	0.6 in	25.4 mm	15.24 mm		SMD to DIP	SOIC	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in	16
SchmalzTech, LLC ST-SOIC-28	1.6 "	0.8 in	40.64 mm	20.32 mm	28	SMD to DIP	SOIC	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SOIC-24 SMD TO DIP ADAPTER
