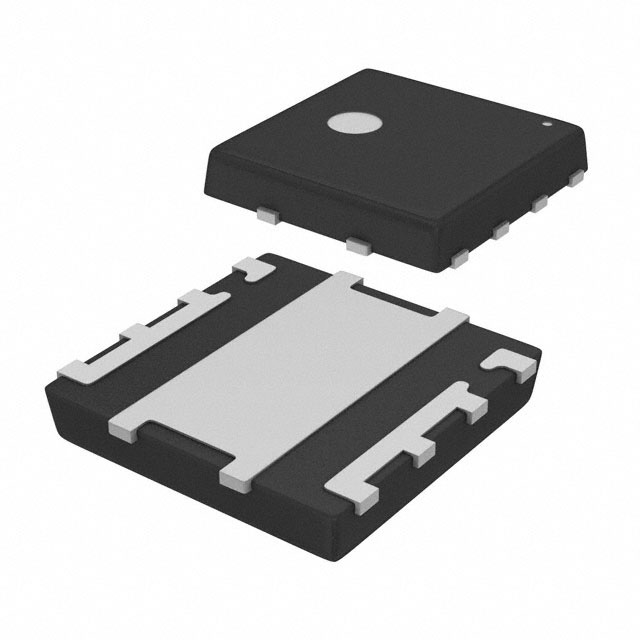

STL7N60M2
ActiveN-CHANNEL 600 V, 0.92 OHM TYP., 5 A MDMESH M2 POWER MOSFET IN A POWERFLAT 5X5 HV PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
STL7N60M2
ActiveN-CHANNEL 600 V, 0.92 OHM TYP., 5 A MDMESH M2 POWER MOSFET IN A POWERFLAT 5X5 HV PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STL7N60M2 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 5 A |
| Drain to Source Voltage (Vdss) | 600 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 8.8 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 271 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | 8-PowerVDFN |
| Power Dissipation (Max) | 67 W, 4 W |
| Rds On (Max) @ Id, Vgs | 1.05 Ohm |
| Supplier Device Package | PowerFLAT™ (5x5) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 25 V |
| Vgs(th) (Max) @ Id | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.13 | |
| 10 | $ 1.36 | |||
| 100 | $ 0.92 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.67 | |||
| Digi-Reel® | 1 | $ 2.13 | ||
| 10 | $ 1.36 | |||
| 100 | $ 0.92 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.67 | |||
| Tape & Reel (TR) | 3000 | $ 0.60 | ||
| 6000 | $ 0.57 | |||
Description
General part information
STL7N6LF3 Series
This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters.
