8MM-11-0010-02-131

Active

Preci-Dip

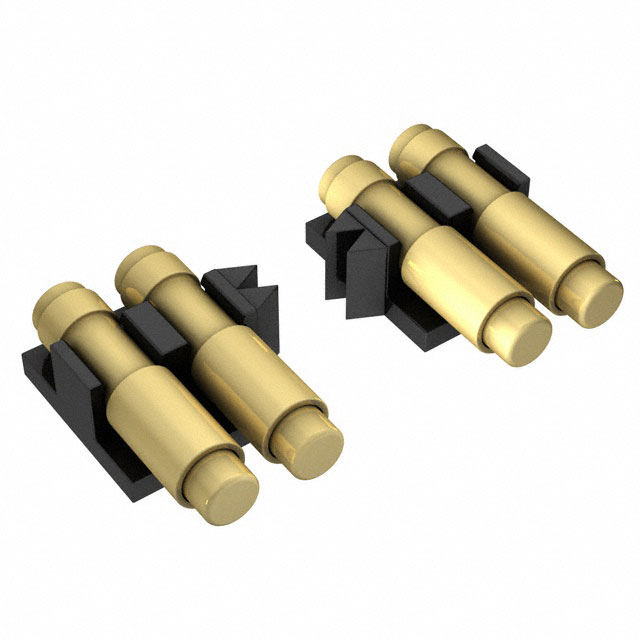

CONN SPRING TARGET 10POS R/A SMD

Deep-Dive with AI

Search across all available documentation for this part.

8MM-11-0010-02-131

Active

Preci-Dip

CONN SPRING TARGET 10POS R/A SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	630	$ 2.76

Description

General part information

8MM-11 Series

10 Position Spring Mating Target Connector Surface Mount, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8MM-11-0010-02-131	8MM-11 Series

Connector Type	Mating Target	Mating Target, Header
Contact Finish	Gold	Gold
Contact Finish - Mating	-	Gold
Contact Finish - Post	-	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Finish Thickness - Mating	-	10 çin
Contact Finish Thickness - Mating	-	0.25 çm
Contact Finish Thickness - Post	-	10 çin
Contact Finish Thickness - Post	-	0.25 çm
Contact Length - Mating	-	4 mm
Contact Length - Mating	-	0.157 in
Contact Material	-	Brass
Contact Shape	-	Circular
Contact Type	-	Male Pin
Current Rating (Amps)	-	3 A
Fastening Type	-	Push-Pull
Features	-	Pick and Place
Insulation Color	-	Black
Insulation Height	-	0.096 "
Insulation Height	-	2.44 mm
Insulation Material	-	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material	Brass	Brass
Material Flammability Rating	-	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Contacts	10	3 - 10
Number of Contacts	-	4
Number of Positions	-	2 - 4
Number of Positions Loaded	-	All
Number of Rows	1	1
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Pitch - Mating	-	0.1 in
Pitch - Mating	-	2.54 mm
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Shrouding	-	Unshrouded
Termination	-	Solder
Voltage Rating	-	150 VDC

8MM-11 Series

CONN SPRING TARGET 9POS R/A SMD

Part	Mounting Type	Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Contacts	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Length - Mating	Contact Length - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Material	Termination	Insulation Color	Number of Positions Loaded	Shrouding	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish - Post	Fastening Type	Number of Contacts [custom]
Preci-Dip 8MM-11-0009-02-131191	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	9	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0004-02-279191	Surface Mount, Right Angle						1			Header	-55 °C	125 °C	Pick and Place	4 mm	0.157 in	Male Pin	0.1 in	2.54 mm	150 VDC	Brass	Solder	Black	All	Unshrouded	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	10 çin	0.25 çm	4	Gold	3 A	10 çin	0.25 çm	Circular	UL94 V-0	0.096 "	2.44 mm	Gold	Push-Pull
Preci-Dip 8MM-11-0002-02-131	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold		1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0007-02-131191	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	7	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0010-02-131	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	10	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0003-02-279191	Surface Mount, Right Angle						1			Header	-55 °C	125 °C	Pick and Place	4 mm	0.157 in	Male Pin	0.1 in	2.54 mm	150 VDC	Brass	Solder	Black	All	Unshrouded	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	10 çin	0.25 çm		Gold	3 A	10 çin	0.25 çm	Circular	UL94 V-0	0.096 "	2.44 mm	Gold	Push-Pull
Preci-Dip 8MM-11-0005-02-131191	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	5	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0002-02-279191	Surface Mount, Right Angle						1			Header	-55 °C	125 °C	Pick and Place	4 mm	0.157 in	Male Pin	0.1 in	2.54 mm	150 VDC	Brass	Solder	Black	All	Unshrouded	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	10 çin	0.25 çm	2	Gold	3 A	10 çin	0.25 çm	Circular	UL94 V-0	0.096 "	2.44 mm	Gold	Push-Pull
Preci-Dip 8MM-11-0003-02-131	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	3	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0004-02-131	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold		1	2.54 mm	0.1 in	Mating Target																													4
