8MM-11-0004-02-131

Active

Preci-Dip

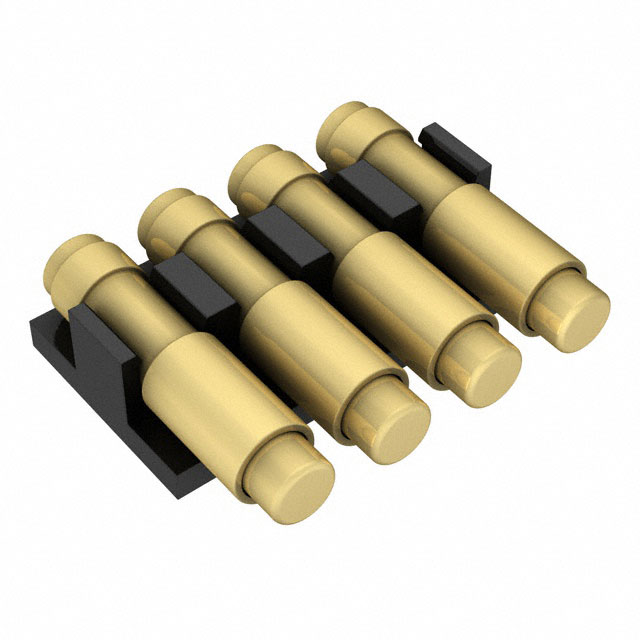

CONN SPRING TARGET 4POS R/A SMD

Deep-Dive with AI

Search across all available documentation for this part.

8MM-11-0004-02-131

Active

Preci-Dip

CONN SPRING TARGET 4POS R/A SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.07
		10	$ 1.76
		25	$ 1.65
		50	$ 1.57
		100	$ 1.49
		250	$ 1.40
		500	$ 1.33
		1000	$ 1.27
		3000	$ 1.17

Description

General part information

8MM-11 Series

4 Position Spring Mating Target Connector Surface Mount, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8MM-11-0004-02-131	8MM-11 Series

Connector Type	Mating Target	Mating Target, Header
Contact Finish	Gold	Gold
Contact Finish - Mating	-	Gold
Contact Finish - Post	-	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Finish Thickness - Mating	-	10 çin
Contact Finish Thickness - Mating	-	0.25 çm
Contact Finish Thickness - Post	-	10 çin
Contact Finish Thickness - Post	-	0.25 çm
Contact Length - Mating	-	4 mm
Contact Length - Mating	-	0.157 in
Contact Material	-	Brass
Contact Shape	-	Circular
Contact Type	-	Male Pin
Current Rating (Amps)	-	3 A
Fastening Type	-	Push-Pull
Features	-	Pick and Place
Insulation Color	-	Black
Insulation Height	-	0.096 "
Insulation Height	-	2.44 mm
Insulation Material	-	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material	Brass	Brass
Material Flammability Rating	-	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Contacts	-	3 - 10
Number of Contacts [custom]	4	4
Number of Positions	-	2 - 4
Number of Positions Loaded	-	All
Number of Rows	1	1
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Pitch - Mating	-	0.1 in
Pitch - Mating	-	2.54 mm
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Shrouding	-	Unshrouded
Termination	-	Solder
Voltage Rating	-	150 VDC

8MM-11 Series

CONN SPRING TARGET 9POS R/A SMD

Part	Mounting Type	Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Contacts	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Length - Mating	Contact Length - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Material	Termination	Insulation Color	Number of Positions Loaded	Shrouding	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish - Post	Fastening Type	Number of Contacts [custom]
Preci-Dip 8MM-11-0009-02-131191	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	9	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0004-02-279191	Surface Mount, Right Angle						1			Header	-55 °C	125 °C	Pick and Place	4 mm	0.157 in	Male Pin	0.1 in	2.54 mm	150 VDC	Brass	Solder	Black	All	Unshrouded	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	10 çin	0.25 çm	4	Gold	3 A	10 çin	0.25 çm	Circular	UL94 V-0	0.096 "	2.44 mm	Gold	Push-Pull
Preci-Dip 8MM-11-0002-02-131	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold		1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0007-02-131191	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	7	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0010-02-131	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	10	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0003-02-279191	Surface Mount, Right Angle						1			Header	-55 °C	125 °C	Pick and Place	4 mm	0.157 in	Male Pin	0.1 in	2.54 mm	150 VDC	Brass	Solder	Black	All	Unshrouded	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	10 çin	0.25 çm		Gold	3 A	10 çin	0.25 çm	Circular	UL94 V-0	0.096 "	2.44 mm	Gold	Push-Pull
Preci-Dip 8MM-11-0005-02-131191	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	5	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0002-02-279191	Surface Mount, Right Angle						1			Header	-55 °C	125 °C	Pick and Place	4 mm	0.157 in	Male Pin	0.1 in	2.54 mm	150 VDC	Brass	Solder	Black	All	Unshrouded	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	10 çin	0.25 çm	2	Gold	3 A	10 çin	0.25 çm	Circular	UL94 V-0	0.096 "	2.44 mm	Gold	Push-Pull
Preci-Dip 8MM-11-0003-02-131	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold	3	1	2.54 mm	0.1 in	Mating Target
Preci-Dip 8MM-11-0004-02-131	Surface Mount, Right Angle	Brass	10 Áin	0.25 Ám	Gold		1	2.54 mm	0.1 in	Mating Target																													4
