AWG28-40/F/300

Unknown

Assmann WSW Components

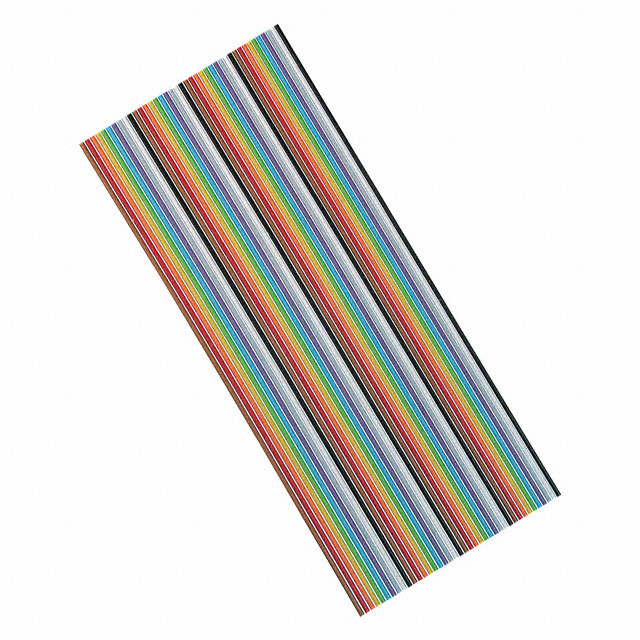

FLAT RIBBON CABLE 40CONDUCTORS 28AWG 300V MULTI COLOR 91.44M REEL

Search across all available documentation for this part.

Unknown

Assmann WSW Components

FLAT RIBBON CABLE 40CONDUCTORS 28AWG 300V MULTI COLOR 91.44M REEL

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature	Cable Type	Ribbon Width [y]	Ribbon Width [y]	Shielding	Jacket (Insulation) Material	Length [x]	Length [x]	Length	Length	Pitch [x]	Pitch [x]	First Conductor Mark	Ribbon Thickness	Ribbon Thickness	Jacket Color	Number of Conductors	Insulation Resistance	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ratings	Wire Gauge	Ribbon Width	Ribbon Width	Length	Operating Temperature [Max]	Operating Temperature [Min]	Spool Size	Spool Size
Assmann WSW Components AWG28-40/F/300	105 C	Flat Cable	50.8 mm	2 in	Unshielded	Poly-Vinyl Chloride (PVC)	3.05 m 30.48 m	10 ft 100 ft	7.62 m 91.44 m	25 ft 300 ft	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Multiple	40	100 MOhms	Copper Tinned	7	36 AWG	300 V	UL Style 2651	28 AWG
Assmann WSW Components AWG28-40/G-1/300		Flat Cable			Unshielded	Poly-Vinyl Chloride (PVC)					0.039 in	1 mm	Red	0.89 mm	0.035 in	Gray	40	100 MOhms	Copper Tinned	7	36 AWG	300 V	UL Style 2651	28 AWG	40 mm	1.575 in	Enter Number of Feet in Order Quantity	105 ░C	-10 °C	300 ft	91.44 m
Assmann WSW Components AWG28-40/G/300		Flat Cable	50.8 mm	2 in	Unshielded	Poly-Vinyl Chloride (PVC)	30.48 m	100 ft			0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Gray	40	100 MOhms	Copper Tinned	7	36 AWG	300 V	UL Style 2651	28 AWG			Enter Number of Feet in Order Quantity	105 ░C	-10 °C	300 ft	91.44 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Multiple 40 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
