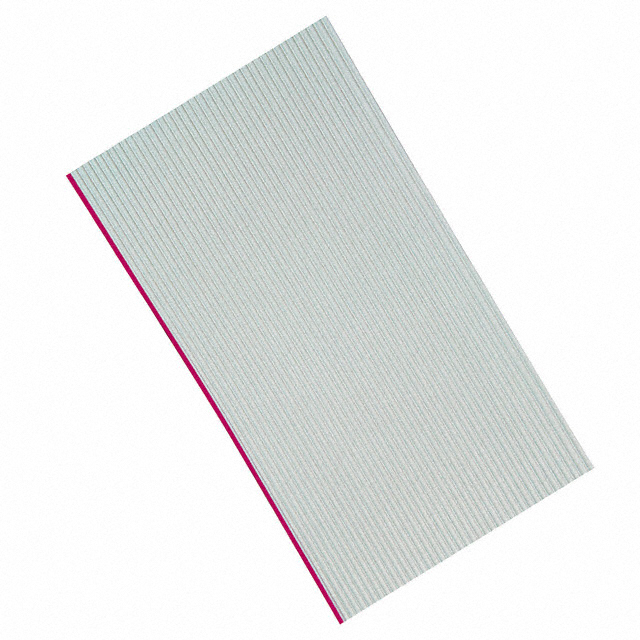

AWG28-40/G/300

Unknown

Assmann WSW Components

CBL RIBN 40COND 0.05 GRAY 100'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 40COND 0.05 GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-40/G/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	40
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [y]	50.8 mm
Ribbon Width [y]	2 in
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Operating Temperature	Cable Type	Ribbon Width [y]	Ribbon Width [y]	Shielding	Jacket (Insulation) Material	Length [x]	Length [x]	Length	Length	Pitch [x]	Pitch [x]	First Conductor Mark	Ribbon Thickness	Ribbon Thickness	Jacket Color	Number of Conductors	Insulation Resistance	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ratings	Wire Gauge	Ribbon Width	Ribbon Width	Length	Operating Temperature [Max]	Operating Temperature [Min]	Spool Size	Spool Size
Assmann WSW Components AWG28-40/F/300	105 C	Flat Cable	50.8 mm	2 in	Unshielded	Poly-Vinyl Chloride (PVC)	3.05 m 30.48 m	10 ft 100 ft	7.62 m 91.44 m	25 ft 300 ft	0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Multiple	40	100 MOhms	Copper Tinned	7	36 AWG	300 V	UL Style 2651	28 AWG
Assmann WSW Components AWG28-40/G-1/300		Flat Cable			Unshielded	Poly-Vinyl Chloride (PVC)					0.039 in	1 mm	Red	0.89 mm	0.035 in	Gray	40	100 MOhms	Copper Tinned	7	36 AWG	300 V	UL Style 2651	28 AWG	40 mm	1.575 in	Enter Number of Feet in Order Quantity	105 ░C	-10 °C	300 ft	91.44 m
Assmann WSW Components AWG28-40/G/300		Flat Cable	50.8 mm	2 in	Unshielded	Poly-Vinyl Chloride (PVC)	30.48 m	100 ft			0.05 in	1.27 mm	Red	0.89 mm	0.035 in	Gray	40	100 MOhms	Copper Tinned	7	36 AWG	300 V	UL Style 2651	28 AWG			Enter Number of Feet in Order Quantity	105 ░C	-10 °C	300 ft	91.44 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Gray 40 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
