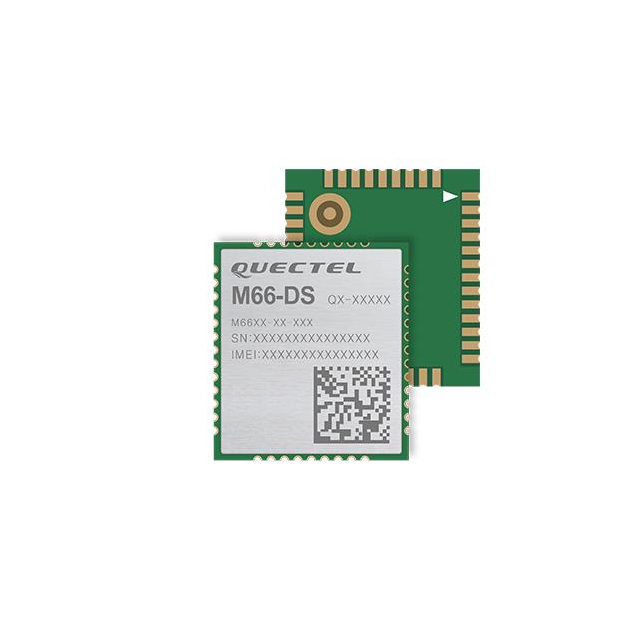

M66DSFA-04-STDN

Obsolete

Quectel

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Quectel

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Receiving	Antenna Type	Serial Interfaces	Frequency	Sensitivity	Protocol	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Data Rate	Utilized IC / Part
Quectel M66DSFATEA-04-STDN	52-SMD Module	4.6 V	3.3 V	1.3 mA	Antenna Not Included	UART	850 MHz 900 MHz 1800 MHz 1900 MHz	-109 dBm	Bluetooth v3.0 GPRS GSM	Surface Mount	85 °C	-40 °C	Bluetooth Cellular	85.6 kbps
Quectel M66FB-03-STD	52-SMD Module	4.6 V	3.3 V	1.3 mA	Antenna Not Included	UART	850 MHz 900 MHz 1800 MHz 1900 MHz	-109 dBm	Bluetooth v3.0 GPRS GSM	Surface Mount	85 °C	-40 °C	Bluetooth Cellular	85.6 kbps	MT6261M
Quectel M66FATEA-04-STDN	52-SMD Module	4.6 V	3.3 V	1.3 mA	Antenna Not Included	UART	850 MHz 900 MHz 1800 MHz 1900 MHz	-109 dBm	Bluetooth v3.0 GPRS GSM	Surface Mount	85 °C	-40 °C	Bluetooth Cellular	85.6 kbps
Quectel M66FA-04-STDN	52-SMD Module	4.6 V	3.3 V	1.3 mA	Antenna Not Included	UART	850 MHz 900 MHz 1800 MHz 1900 MHz	-109 dBm	Bluetooth v3.0 GPRS GSM	Surface Mount	85 °C	-40 °C	Bluetooth Cellular	85.6 kbps	MT6261D
Quectel M66DSFA-04-STDN	52-SMD Module	4.6 V	3.3 V	1.3 mA	Antenna Not Included	ADC PCM SDIO	850 MHz 900 MHz 1800 MHz 1900 MHz	-109 dBm	GPRS GSM	Surface Mount	85 °C	-40 °C	Cellular	85.6 kbps	MT6261D
Quectel M66FB-03-BT	52-SMD Module	4.6 V	3.3 V	1.3 mA	Antenna Not Included	UART	850 MHz 900 MHz 1800 MHz 1900 MHz	-109 dBm	Bluetooth v3.0 GPRS GSM	Surface Mount	85 °C	-40 °C	Bluetooth Cellular	85.6 kbps	MT6261M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular GSM, GPRS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
