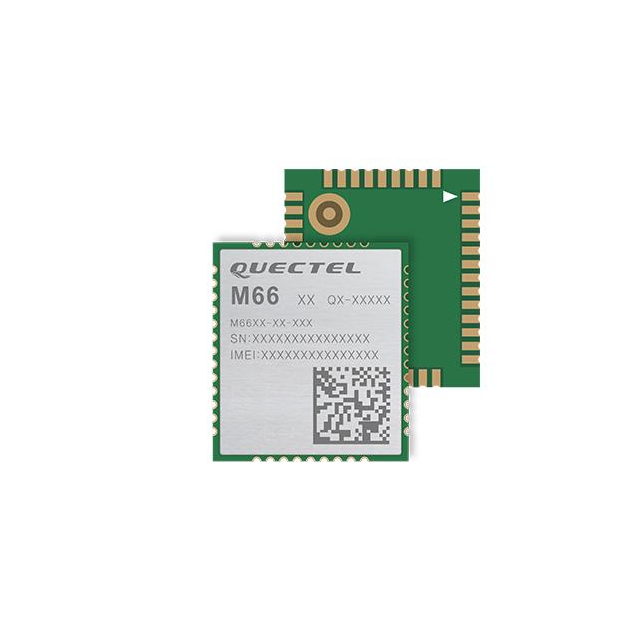

M66FB-03-STD
Quectel
RF TXRX MOD BT CELLSMD
Deep-Dive with AI
Search across all available documentation for this part.
M66FB-03-STD
Quectel
RF TXRX MOD BT CELLSMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M66FB-03-STD |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 1.3 mA |
| Data Rate | 85.6 kbps |
| Frequency | 1900 MHz, 1800 MHz, 900 MHz, 850 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 52-SMD Module |
| Protocol | GPRS, Bluetooth v3.0, GSM |
| RF Family/Standard | Bluetooth, Cellular |
| Sensitivity | -109 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | MT6261M |
| Voltage - Supply [Max] | 4.6 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.90 | |
| 10 | $ 15.29 | |||
| 25 | $ 14.09 | |||
| 100 | $ 12.88 | |||
| Digi-Reel® | 1 | $ 16.90 | ||
| 10 | $ 15.29 | |||
| 25 | $ 14.09 | |||
| 100 | $ 12.88 | |||
Description
General part information
M66 Series
Bluetooth, Cellular Bluetooth v3.0, GSM, GPRS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
