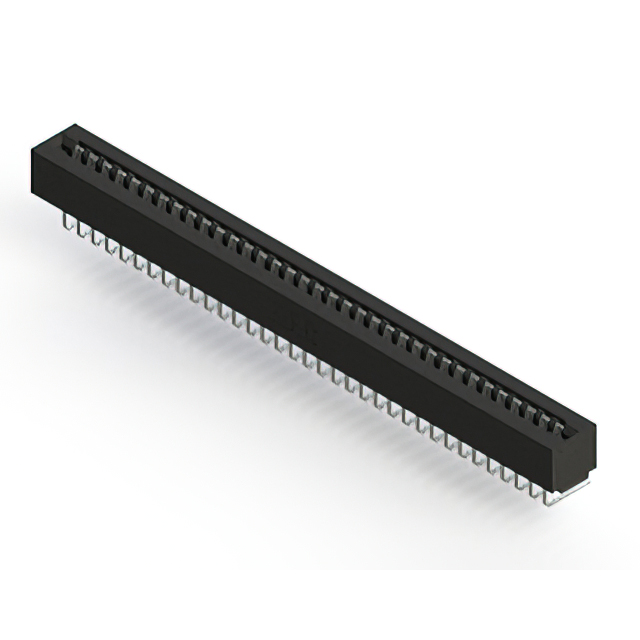

357-035-458-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, 35 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-035-458-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, 35 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-035-458-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	35
Number of Positions/Bay/Row [custom]	35
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

357-035 Series

...

Part	Gender	Termination Rows	Read Out	Termination	Contact Material	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions/Bay/Row [custom]	Material - Insulation	Flange Feature	Card Type	Number of Rows	Number of Positions	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-035-541-178	Female	1	Dual	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	2	70	Card Guides	-40 °C	105 ░C	Through Hole
EDAC Inc. 357-035-505-104	Female	1	Single	Solder Eyelet(s)	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	1	35		-40 °C	105 ░C	Through Hole	3.96 mm	0.156 in
EDAC Inc. 357-035-458-101	Female	1	Single	Solder	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows			Tin	35	Polyester Thermoplastic		Non Specified - Single Edge	1	35		-40 °C	105 ░C	Through Hole Right Angle
EDAC Inc. 357-035-453-158	Female	1	Dual	Solder	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows			Tin	35	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	2	70	Card Guides	-40 °C	105 ░C	Through Hole Right Angle
EDAC Inc. 357-035-521-178	Female	1	Dual	Solder	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	2	70	Card Guides	-40 °C	105 ░C	Through Hole
EDAC Inc. 357-035-541-103	Female	1	Dual	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	Floating Bobbin Flush Mount	Non Specified - Dual Edge	2	70		-40 °C	105 ░C	Through Hole	2.95 mm	0.116 in
EDAC Inc. 357-035-447-107	Female	1	Single	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows			Tin	35	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	1	35		-40 °C	105 ░C	Through Hole
EDAC Inc. 357-035-553-107	Female	1	Dual	Solder	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	2	70		-40 °C	105 ░C	Through Hole Right Angle
EDAC Inc. 357-035-541-104	Female	1	Dual	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	70		-40 °C	105 ░C	Through Hole	3.96 mm	0.156 in
EDAC Inc. 357-035-557-168	Female	1	Dual	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	2	70	Card Guides	-40 °C	105 ░C	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.63
Newark	Each	1	$ 22.80
		100	$ 13.31
		250	$ 12.18
		500	$ 10.79
		1000	$ 8.77

Description

General part information

357-035 Series

35 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
