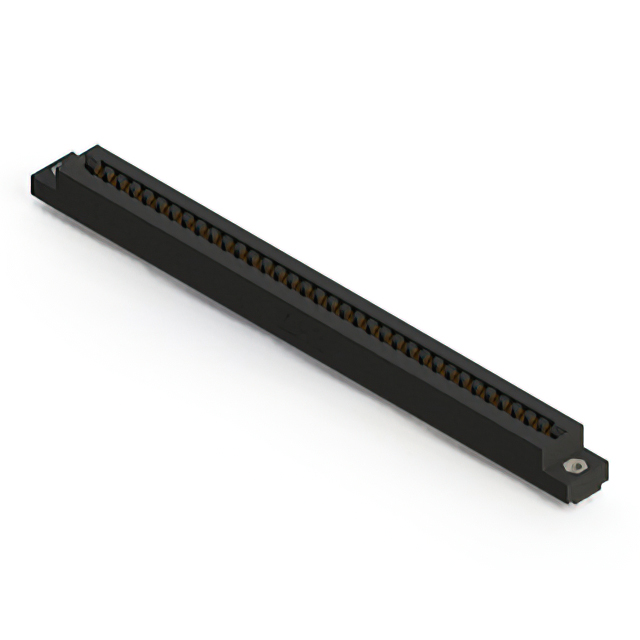

357-035-553-107

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-035-553-107

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-035-553-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	70
Number of Positions/Bay/Row [custom]	35
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

357-035 Series

...

Part	Gender	Termination Rows	Read Out	Termination	Contact Material	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions/Bay/Row [custom]	Material - Insulation	Flange Feature	Card Type	Number of Rows	Number of Positions	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-035-541-178	Female	1	Dual	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	2	70	Card Guides	-40 °C	105 ░C	Through Hole
EDAC Inc. 357-035-505-104	Female	1	Single	Solder Eyelet(s)	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	1	35		-40 °C	105 ░C	Through Hole	3.96 mm	0.156 in
EDAC Inc. 357-035-458-101	Female	1	Single	Solder	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows			Tin	35	Polyester Thermoplastic		Non Specified - Single Edge	1	35		-40 °C	105 ░C	Through Hole Right Angle
EDAC Inc. 357-035-453-158	Female	1	Dual	Solder	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows			Tin	35	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	2	70	Card Guides	-40 °C	105 ░C	Through Hole Right Angle
EDAC Inc. 357-035-521-178	Female	1	Dual	Solder	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	2	70	Card Guides	-40 °C	105 ░C	Through Hole
EDAC Inc. 357-035-541-103	Female	1	Dual	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	Floating Bobbin Flush Mount	Non Specified - Dual Edge	2	70		-40 °C	105 ░C	Through Hole	2.95 mm	0.116 in
EDAC Inc. 357-035-447-107	Female	1	Single	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows			Tin	35	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	1	35		-40 °C	105 ░C	Through Hole
EDAC Inc. 357-035-553-107	Female	1	Dual	Solder	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	2	70		-40 °C	105 ░C	Through Hole Right Angle
EDAC Inc. 357-035-541-104	Female	1	Dual	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	2	70		-40 °C	105 ░C	Through Hole	3.96 mm	0.156 in
EDAC Inc. 357-035-557-168	Female	1	Dual	Wire Wrap	Copper Alloy	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Semi Bellows	10 Áin	0.25 Ám	Gold	35	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	2	70	Card Guides	-40 °C	105 ░C	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 40.34
Newark	Each	1	$ 45.39
		100	$ 31.84
		250	$ 24.92
		500	$ 23.46
		1000	$ 19.64

Description

General part information

357-035 Series

70 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
