82913607A

Active

Souriau-Sunbank by Eaton

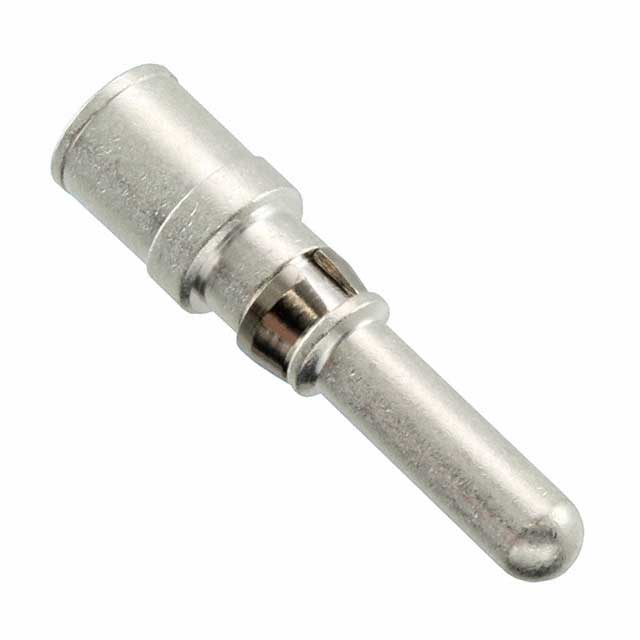

CONTACT PIN 10AWG CRIMP SILVER

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONTACT PIN 10AWG CRIMP SILVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact 10 AWG Size 8 Crimp Silver

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONTACT PIN 10AWG CRIMP SILVER

Part	Wire Gauge or Range - AWG	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Material	Contact Size	Type	Wire Gauge or Range - mm²	Contact Termination	Contact Finish	Wire Gauge or Range - mm˛
Souriau-Sunbank by Eaton 82913607A	10 AWG	2 µm	78.7 µin	Pin	Copper Alloy	8	Power, Machined	6 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913604A	12 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined	4 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913602A	14 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined	2.5 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913600A	16 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined	1.5 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913606A	10 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined	6 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913601A	16 AWG	2 µm	78.7 µin	Pin	Copper Alloy	8	Power, Machined	1.5 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913603A	14 AWG	2 µm	78.7 µin	Pin	Copper Alloy	8	Power, Machined	2.5 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913608A	8 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined		Crimp	Silver	10 mm˛
Souriau-Sunbank by Eaton 82913605A	12 AWG	2 µm	78.7 µin	Pin	Copper Alloy	8	Power, Machined	4 mm²	Crimp	Silver
