82913601A

Active

Souriau-Sunbank by Eaton

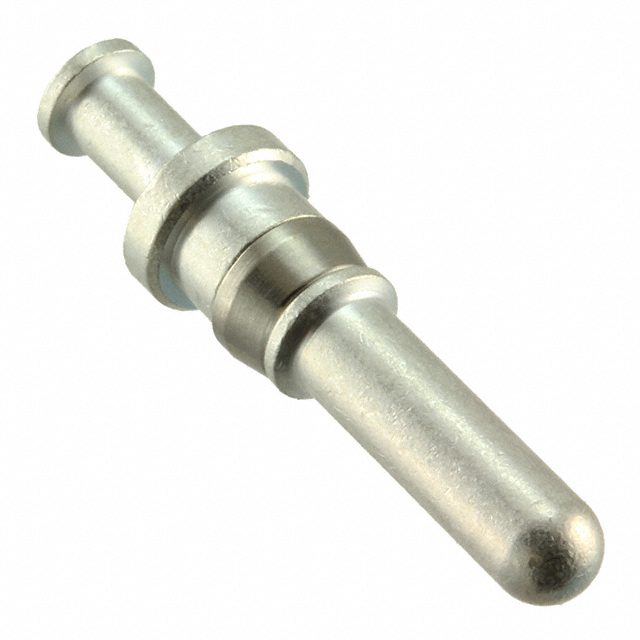

CONTACT PIN 16AWG CRIMP SILVER

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONTACT PIN 16AWG CRIMP SILVER

Technical Specifications

Parameters and characteristics commom to parts in this series

CONTACT PIN 10AWG CRIMP SILVER

Part	Wire Gauge or Range - AWG	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Material	Contact Size	Type	Wire Gauge or Range - mm²	Contact Termination	Contact Finish	Wire Gauge or Range - mm˛
Souriau-Sunbank by Eaton 82913607A	10 AWG	2 µm	78.7 µin	Pin	Copper Alloy	8	Power, Machined	6 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913604A	12 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined	4 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913602A	14 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined	2.5 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913600A	16 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined	1.5 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913606A	10 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined	6 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913601A	16 AWG	2 µm	78.7 µin	Pin	Copper Alloy	8	Power, Machined	1.5 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913603A	14 AWG	2 µm	78.7 µin	Pin	Copper Alloy	8	Power, Machined	2.5 mm²	Crimp	Silver
Souriau-Sunbank by Eaton 82913608A	8 AWG	2 µm	78.7 µin	Socket	Copper Alloy	8	Power, Machined		Crimp	Silver	10 mm˛
Souriau-Sunbank by Eaton 82913605A	12 AWG	2 µm	78.7 µin	Pin	Copper Alloy	8	Power, Machined	4 mm²	Crimp	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact 16 AWG Size 8 Crimp Silver
