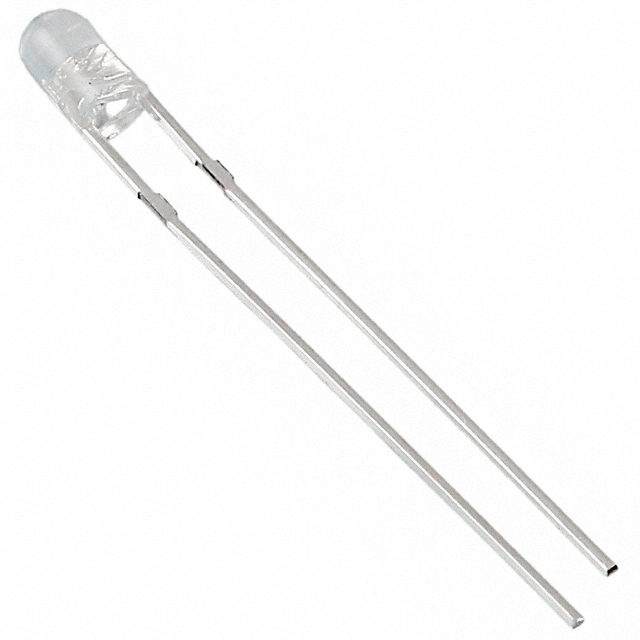

Specification	VAOL-3MWY4

Color	White
Configuration	Standard
Current - Test	20 mA
Height (Max)	5.25 mm
Lens Color	Colorless
Lens Diameter	3 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	2500 mcd
Mounting Type	Through Hole
Package / Case	Radial
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	3.5 V

VAOL-3 Series

Part	Viewing Angle	Lens Style	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Transparency	Color	Configuration	Lens Color	Current - Test	Millicandela Rating	Package / Case	Height (Max)	Lens Diameter	Wavelength - Dominant	Package Name	Wavelength	Operating Temperature (Min)	Operating Temperature (Max)	Type	Orientation	Current - DC Forward (If) (Max)
Visual Communications Company - VCC VAOL-3LWY4	60 °	Domed Top Round	3.5 V	Through Hole	Clear	White	Standard	Colorless	20 mA	2500 mcd	Radial	5.55 mm	2.9 mm
Visual Communications Company - VCC VAOL-3GSBY4	30 °	Domed Top Round	3.5 V	Through Hole	Clear	Blue	Standard	Colorless	20 mA	2500 mcd	Radial	5.55 mm	2.9 mm	470 nm
Visual Communications Company - VCC VAOL-3LDE2	60 °	Domed Top Round	2.2 V	Through Hole	Diffused	Green	Standard	Green	20 mA	80 mcd	Radial	5.55 mm	2.9 mm	570 nm
Visual Communications Company - VCC VAOL-3LAE2	60 °	Domed Top Round	1.8 V	Through Hole	Diffused	Red	Standard	Red	20 mA	80 mcd	Radial	5.55 mm	2.9 mm	640 nm	Radial Lead
Visual Communications Company - VCC VAOL-3GUV0Y4	60 °		3 V	Through Hole							Radial					405 nm	-20 °C	80 °C	Ultraviolet (UV)	Top View	30 mA
Visual Communications Company - VCC VAOL-3LSBY1	60 °	Domed Top Round	3.5 V	Through Hole	Diffused	Blue	Standard	White	20 mA	1200 mcd	Radial	5.55 mm	2.9 mm	470 nm
Visual Communications Company - VCC VAOL-3MAE2		Domed Top Round	1.8 V	Through Hole	Diffused	Red	Standard	Red	20 mA	80 mcd	Radial	5.1 mm	3 mm	640 nm
Visual Communications Company - VCC VAOL-3MDE2		Domed Top Round	2.2 V	Through Hole	Diffused	Green	Standard	Green	20 mA	80 mcd	Radial	5.1 mm	3 mm	570 nm
Visual Communications Company - VCC VAOL-3GWY4	30 °	Domed Top Round	3.5 V	Through Hole	Clear	White	Standard	Colorless	20 mA	3500 mcd	Radial	5.55 mm	2.9 mm
Visual Communications Company - VCC VAOL-3MWY4	60 °	Domed Top Round	3.5 V	Through Hole	Clear	White	Standard	Colorless	20 mA	2500 mcd	Radial	5.25 mm	3 mm
