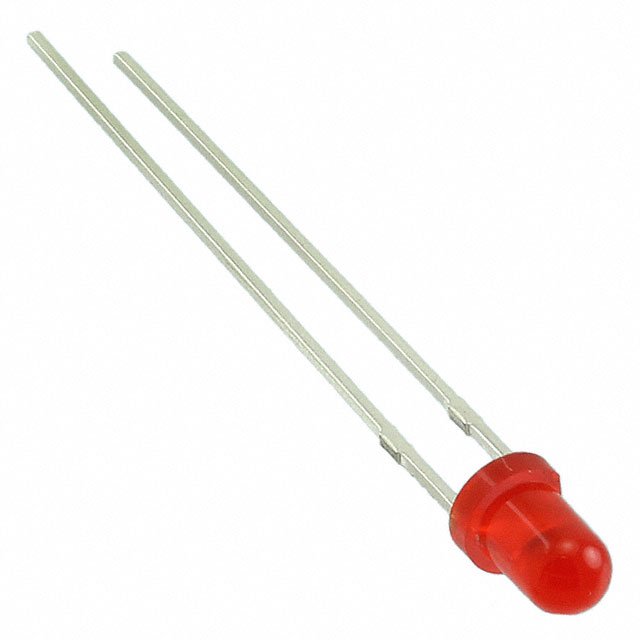

Specification	VAOL-3LAE2

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max)	5.55 mm
Lens Color	Red
Lens Diameter	2.9 mm
Lens Style	Round, Domed Top
Lens Transparency	Diffused
Millicandela Rating	80 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Name	Radial Lead
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	1.8 V
Wavelength - Dominant	640 nm

VAOL-3 Series

Part	Viewing Angle	Lens Style	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Transparency	Color	Configuration	Lens Color	Current - Test	Millicandela Rating	Package / Case	Height (Max)	Lens Diameter	Wavelength - Dominant	Package Name	Wavelength	Operating Temperature (Min)	Operating Temperature (Max)	Type	Orientation	Current - DC Forward (If) (Max)
Visual Communications Company - VCC VAOL-3LWY4	60 °	Domed Top Round	3.5 V	Through Hole	Clear	White	Standard	Colorless	20 mA	2500 mcd	Radial	5.55 mm	2.9 mm
Visual Communications Company - VCC VAOL-3GSBY4	30 °	Domed Top Round	3.5 V	Through Hole	Clear	Blue	Standard	Colorless	20 mA	2500 mcd	Radial	5.55 mm	2.9 mm	470 nm
Visual Communications Company - VCC VAOL-3LDE2	60 °	Domed Top Round	2.2 V	Through Hole	Diffused	Green	Standard	Green	20 mA	80 mcd	Radial	5.55 mm	2.9 mm	570 nm
Visual Communications Company - VCC VAOL-3LAE2	60 °	Domed Top Round	1.8 V	Through Hole	Diffused	Red	Standard	Red	20 mA	80 mcd	Radial	5.55 mm	2.9 mm	640 nm	Radial Lead
Visual Communications Company - VCC VAOL-3GUV0Y4	60 °		3 V	Through Hole							Radial					405 nm	-20 °C	80 °C	Ultraviolet (UV)	Top View	30 mA
Visual Communications Company - VCC VAOL-3LSBY1	60 °	Domed Top Round	3.5 V	Through Hole	Diffused	Blue	Standard	White	20 mA	1200 mcd	Radial	5.55 mm	2.9 mm	470 nm
Visual Communications Company - VCC VAOL-3MAE2		Domed Top Round	1.8 V	Through Hole	Diffused	Red	Standard	Red	20 mA	80 mcd	Radial	5.1 mm	3 mm	640 nm
Visual Communications Company - VCC VAOL-3MDE2		Domed Top Round	2.2 V	Through Hole	Diffused	Green	Standard	Green	20 mA	80 mcd	Radial	5.1 mm	3 mm	570 nm
Visual Communications Company - VCC VAOL-3GWY4	30 °	Domed Top Round	3.5 V	Through Hole	Clear	White	Standard	Colorless	20 mA	3500 mcd	Radial	5.55 mm	2.9 mm
Visual Communications Company - VCC VAOL-3MWY4	60 °	Domed Top Round	3.5 V	Through Hole	Clear	White	Standard	Colorless	20 mA	2500 mcd	Radial	5.25 mm	3 mm
