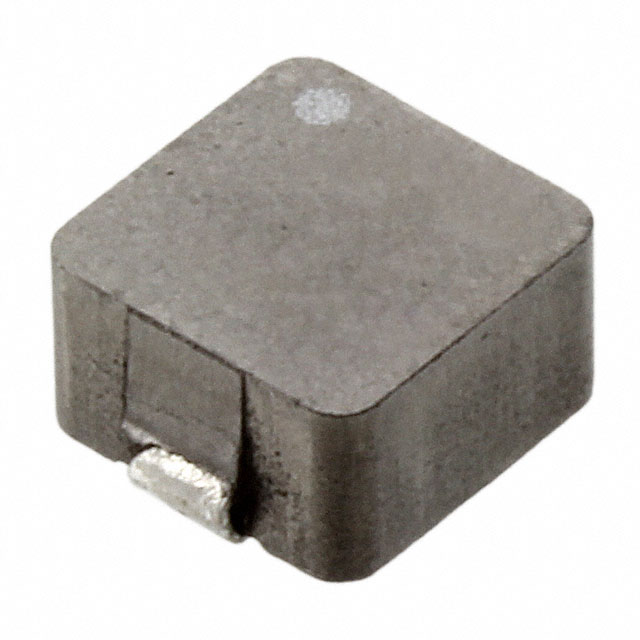

MPCH0740LR36E - MPCH0740LR36E

MPCH0740LR36E

Active
KEMET

FIXED IND 360NH 23A 1.42MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMPCH0740LR36E Spec+2
MPCH0740LR36E - MPCH0740LR36E

MPCH0740LR36E

Active
KEMET

FIXED IND 360NH 23A 1.42MOHM SMD

Deep-Dive with AI

DocumentsDatasheetMPCH0740LR36E Spec+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMPCH0740LR36E
Current - Saturation (Isat)22 A
Current Rating (Amps)23 A
DC Resistance (DCR)1.42 mOhm
Height - Seated (Max) [Max]0.157 in
Height - Seated (Max) [Max]4 mm
Inductance360 nH
Inductance Frequency - Test100 kHz
Material - CoreMetal Composite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseNonstandard
ShieldingShielded
Size / Dimension [x]8 mm
Size / Dimension [x]0.315 "
Size / Dimension [y]6.7 mm
Size / Dimension [y]0.264 in
Tolerance20 %
