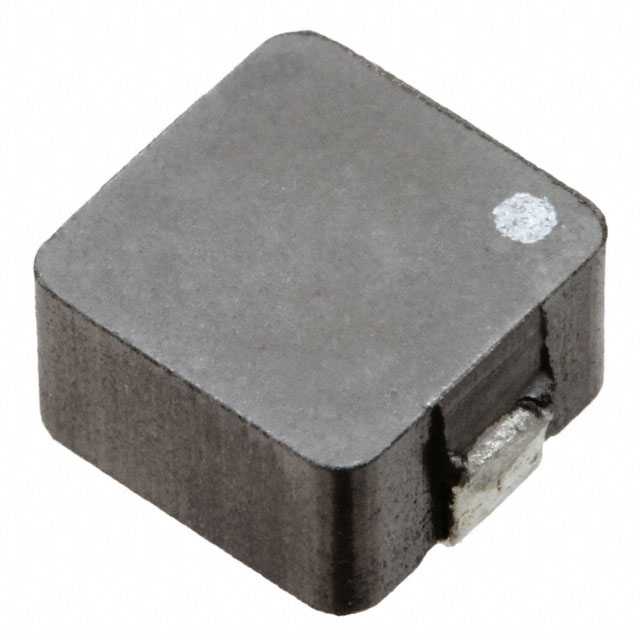

MPCH0740LR24
ActiveKEMET
FIXED IND 240NH 27A 1 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
MPCH0740LR24
ActiveKEMET
FIXED IND 240NH 27A 1 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPCH0740LR24 |
|---|---|
| Current - Saturation (Isat) | 20 A |
| Current Rating (Amps) | 27 A |
| DC Resistance (DCR) | 1 mOhm |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Inductance | 240 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [y] | 6.7 mm |
| Size / Dimension [y] | 0.264 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.72 | |
| 10 | $ 1.46 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.20 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 1.72 | ||
| 10 | $ 1.46 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.20 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.86 | |||
| Tape & Reel (TR) | 2000 | $ 0.86 | ||
| 4000 | $ 0.83 | |||
| 6000 | $ 0.80 | |||
| 10000 | $ 0.76 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.87 | |
| 4000 | $ 0.78 | |||
| 6000 | $ 0.75 | |||
| 10000 | $ 0.72 | |||
Description
General part information
MPCH0740 Series
240 nH Shielded Inductor 27 A 1mOhm Nonstandard
