61818-1
ActiveTE Connectivity Raychem Cable Protection

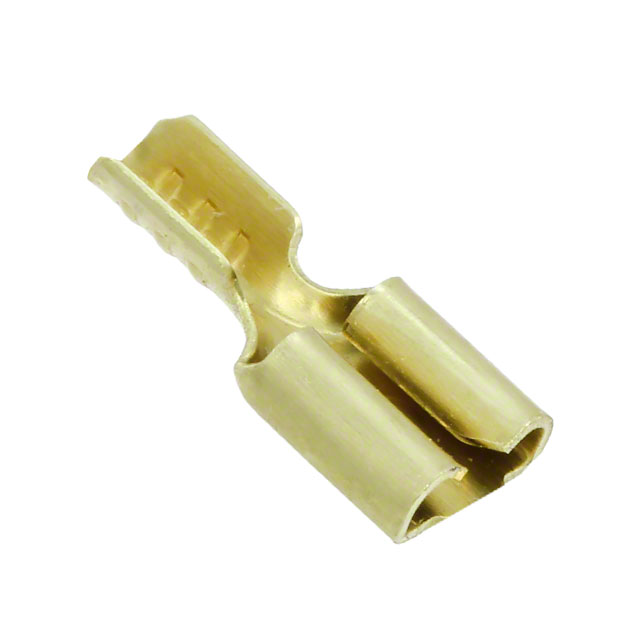

QUICK DISCONNECT TERMINAL 22-26AWG BRASS F 8.31MM REEL
Deep-Dive with AI
Search across all available documentation for this part.
61818-1
ActiveTE Connectivity Raychem Cable Protection
QUICK DISCONNECT TERMINAL 22-26AWG BRASS F 8.31MM REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 61818-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall [x] | 8.31 mm |
| Length - Overall [x] | 0.327 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 3.56 mm |
| Tab Length | 0.14 " |
| Tab Thickness | 0.016 " |
| Tab Thickness | 0.41 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.03 | |||
| 25 | $ 0.03 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| 2500 | $ 0.02 | |||
| Tape & Reel (TR) | 50000 | $ 0.02 | ||
Description
General part information
FASTON 110 Series
Terminals 110 FASTON IS
