42470-1

Active

TE Connectivity Raychem Cable Protection

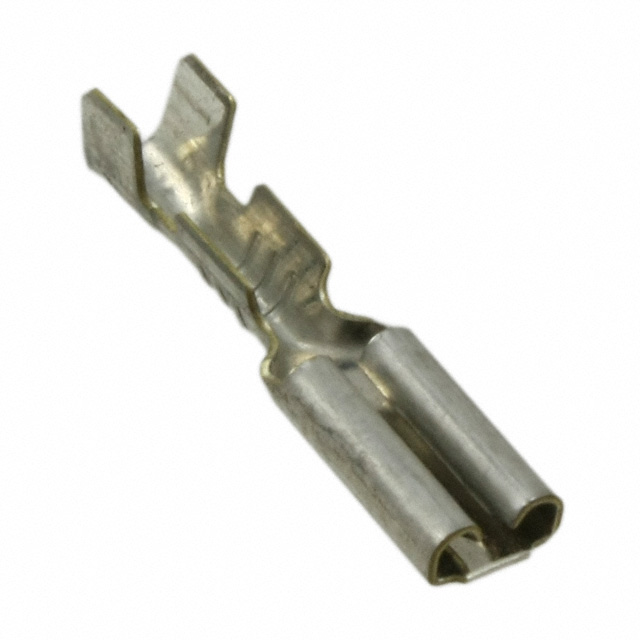

QUICK DISCONNECT TERMINAL 18-22AWG BRASS F 17.39MM PRE-TIN BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Wire Preparation And Crimp Inspection Guide +4

42470-1

Active

TE Connectivity Raychem Cable Protection

QUICK DISCONNECT TERMINAL 18-22AWG BRASS F 17.39MM PRE-TIN BAG

Deep-Dive with AI

DocumentsDatasheet Wire Preparation And Crimp Inspection Guide +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	42470-1

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max]	0.1 in
Insulation Diameter [Max]	2.54 mm
Insulation Diameter [Min]	0.06 in
Insulation Diameter [Min]	1.52 mm
Length - Overall [x]	0.635 in
Length - Overall [x]	16.13 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	6.35 mm
Tab Length	0.25 in
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

FASTON 110 Series

Terminals 110 FASTON IS

Part	Tab Thickness	Tab Thickness	Termination	Tab Length	Tab Length	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Mounting Type	Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Material	Tab Width	Tab Width	Length - Overall [x]	Length - Overall [x]	Contact Finish	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Color	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Number of Positions	Style	Material	Note	Terminal Size	Terminal Size	Tab Length	Insulation Diameter [diameter]	Insulation Diameter [diameter]
TE Connectivity Raychem Cable Protection 626042-2	0.02 "	0.51 mm	Crimp	6.35 mm	0.25 in	Female	15 AWG	20 AWG	Standard	Free Hanging (In-Line)	Non-Insulated	0.08 in	3.05 mm	0.12 in	2.03 mm	Brass	2.79 mm	0.11 "	0.551 "	14 mm	Tin
TE Connectivity Raychem Cable Protection 62321-1	0.02 "	0.51 mm	Crimp			Female	16 AWG	22 AWG	Angled - 90° Flag	Free Hanging (In-Line) Right Angle	Non-Insulated					Brass	2.79 mm	0.11 "			Tin
TE Connectivity Raychem Cable Protection 160626-1	0.032 in	0.81 mm	Crimp	6.3 mm	0.248 in	Female	17 AWG	20 AWG	Standard	Free Hanging (In-Line)	Non-Insulated					Brass	2.79 mm	0.11 "	0.551 "	14 mm		2 mm	0.118 in	0.079 in	3 mm
TE Connectivity Raychem Cable Protection 60118-4	0.016 "	0.41 mm	Crimp	6.35 mm	0.25 in	Female	17.5 AWG	22 AWG	Standard	Free Hanging (In-Line)	Non-Insulated					Brass	2.79 mm	0.11 "	0.635 in	16.13 mm	Tin			1.52 mm	2.54 mm	0.06 in	0.1 in
TE Connectivity Raychem Cable Protection 640929-2	0.02 "	0.51 mm	Crimp	6.35 mm	0.25 in	Female			Standard	Free Hanging (In-Line)	Non-Mating End Insulated					Brass	2.79 mm	0.11 "	0.8 in	20.32 mm	Tin							Blue
TE Connectivity Raychem Cable Protection 925387-2						Female Receptacle			Disconnect Quick Connect	Free Hanging (In-Line)																		Clear	Quick Connects	0.11 in	2.79 mm	1	Housing	Polycarbonate	Contacts Not Included	0.11 in	2.79 mm
TE Connectivity Raychem Cable Protection 42470-1	0.02 "	0.51 mm	Crimp	6.35 mm	0.25 in	Female	17.5 AWG	22 AWG	Standard	Free Hanging (In-Line)	Non-Insulated					Brass	2.79 mm	0.11 "	0.635 in	16.13 mm	Tin			1.52 mm	2.54 mm	0.06 in	0.1 in
TE Connectivity Raychem Cable Protection 61818-1	0.016 "	0.41 mm	Crimp		3.56 mm	Female	22 AWG	26 AWG	Standard	Free Hanging (In-Line)	Non-Insulated					Brass	2.79 mm	0.11 "	0.327 in	8.31 mm																		0.14 "
TE Connectivity Raychem Cable Protection 737107-1	0.02 "	0.51 mm	Crimp	6.3 mm	0.248 in	Female	17 AWG	20 AWG	Standard	Free Hanging (In-Line)	Non-Insulated					Brass	2.79 mm	0.11 "	0.571 in	14.5 mm																			3.3 mm	0.13 in
TE Connectivity Raychem Cable Protection 60118-1	0.016 "	0.41 mm	Crimp	6.35 mm	0.25 in	Female	17.5 AWG	22 AWG	Standard	Free Hanging (In-Line)	Non-Insulated					Brass	2.79 mm	0.11 "	0.635 in	16.13 mm	Tin			1.52 mm	2.54 mm	0.06 in	0.1 in
