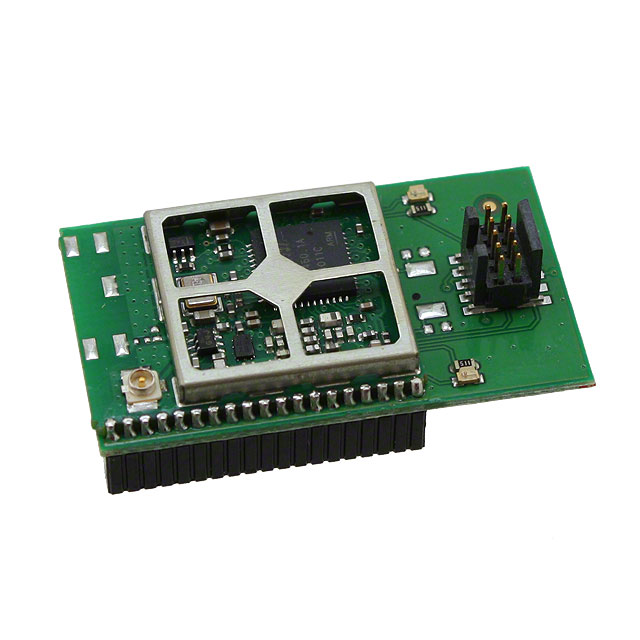

EM357-MOD-LR-RF-TK

Active

Silicon Labs

RF TXRX MOD 802.15.4 CONN MT

Search across all available documentation for this part.

Active

Silicon Labs

RF TXRX MOD 802.15.4 CONN MT

Technical Specifications

Parameters and characteristics for this part

Part	Memory Size [custom]	Memory Size [custom]	Antenna Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensitivity	Data Rate	Utilized IC / Part	Power - Output	Modulation	Frequency	Current - Receiving	RF Family/Standard	Protocol	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Mounting Type	Current - Transmitting [Max]	Current - Transmitting [Min]	GPIO	Type	Supplier Device Package	Data Rate (Max) [Max]	Supplied Contents	For Use With/Related Products
Silicon Labs EM357-MOD-LR-ANT-T	12 kB	192 kB	Integrated Chip	2.1 V	3.6 V	-102 dBm	5 MBd	EM357	8 dBm	O-QPSK	2.4 GHz	26 mA	802.15.4	Zigbee®	Module	85 °C	-40 °C	I2C JTAG SPI UART	Connector Mount	43.5 mA	22.5 mA
Silicon Labs EM357-IRT	12 kB	192 kB		2.1 V	3.6 V	-102 dBm			8 dBm	O-QPSK	2.4 GHz		802.15.4	Zigbee®	48-VFQFN Exposed Pad	85 °C	-40 °C	I2C JTAG SPI UART	Surface Mount	43.5 mA	21.5 mA	24	TxRx + MCU	48-QFN (7x7)
Silicon Labs EM357-RTB	12 kB	192 kB		2.1 V	3.6 V	-102 dBm			8 dBm	O-QPSK	2.4 GHz		802.15.4	Zigbee®	48-VFQFN Exposed Pad	85 °C	-40 °C	I2C JTAG SPI UART	Surface Mount	43.5 mA	21.5 mA	24	TxRx + MCU	48-QFN (7x7)	5 Mbps
Silicon Labs EM357-STACK											2.4 GHz												802.15.4 (ZigBee®) Transceiver			Board(s)	EM357
Silicon Labs EM357-MOD-LR-RF-TK	12 kB	192 kB	Antenna Not Included	2.1 V	3.6 V	-102 dBm	5 MBd	EM357	8 dBm	O-QPSK	2.4 GHz	26 mA	802.15.4	Zigbee®	Module	85 °C	-40 °C	I2C JTAG SPI UART	Connector Mount	43.5 mA	22.5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	12	$ 52.27

General part information

802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included Connector Mount
