EM357-STACK

Obsolete

Silicon Labs

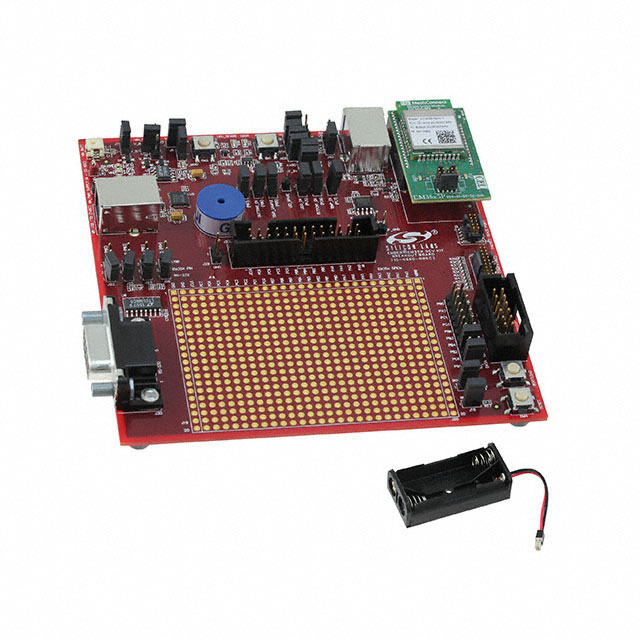

BOARD STACK EM357 MOD & BREAKOUT

Search across all available documentation for this part.

Obsolete

Silicon Labs

BOARD STACK EM357 MOD & BREAKOUT

Technical Specifications

Parameters and characteristics for this part

Specification	EM357-STACK

For Use With/Related Products	EM357
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Transceiver, 802.15.4 (ZigBee®)

Part	Memory Size [custom]	Memory Size [custom]	Antenna Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensitivity	Data Rate	Utilized IC / Part	Power - Output	Modulation	Frequency	Current - Receiving	RF Family/Standard	Protocol	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Mounting Type	Current - Transmitting [Max]	Current - Transmitting [Min]	GPIO	Type	Supplier Device Package	Data Rate (Max) [Max]	Supplied Contents	For Use With/Related Products
Silicon Labs EM357-MOD-LR-ANT-T	12 kB	192 kB	Integrated Chip	2.1 V	3.6 V	-102 dBm	5 MBd	EM357	8 dBm	O-QPSK	2.4 GHz	26 mA	802.15.4	Zigbee®	Module	85 °C	-40 °C	I2C JTAG SPI UART	Connector Mount	43.5 mA	22.5 mA
Silicon Labs EM357-IRT	12 kB	192 kB		2.1 V	3.6 V	-102 dBm			8 dBm	O-QPSK	2.4 GHz		802.15.4	Zigbee®	48-VFQFN Exposed Pad	85 °C	-40 °C	I2C JTAG SPI UART	Surface Mount	43.5 mA	21.5 mA	24	TxRx + MCU	48-QFN (7x7)
Silicon Labs EM357-RTB	12 kB	192 kB		2.1 V	3.6 V	-102 dBm			8 dBm	O-QPSK	2.4 GHz		802.15.4	Zigbee®	48-VFQFN Exposed Pad	85 °C	-40 °C	I2C JTAG SPI UART	Surface Mount	43.5 mA	21.5 mA	24	TxRx + MCU	48-QFN (7x7)	5 Mbps
Silicon Labs EM357-STACK											2.4 GHz												802.15.4 (ZigBee®) Transceiver			Board(s)	EM357
Silicon Labs EM357-MOD-LR-RF-TK	12 kB	192 kB	Antenna Not Included	2.1 V	3.6 V	-102 dBm	5 MBd	EM357	8 dBm	O-QPSK	2.4 GHz	26 mA	802.15.4	Zigbee®	Module	85 °C	-40 °C	I2C JTAG SPI UART	Connector Mount	43.5 mA	22.5 mA
