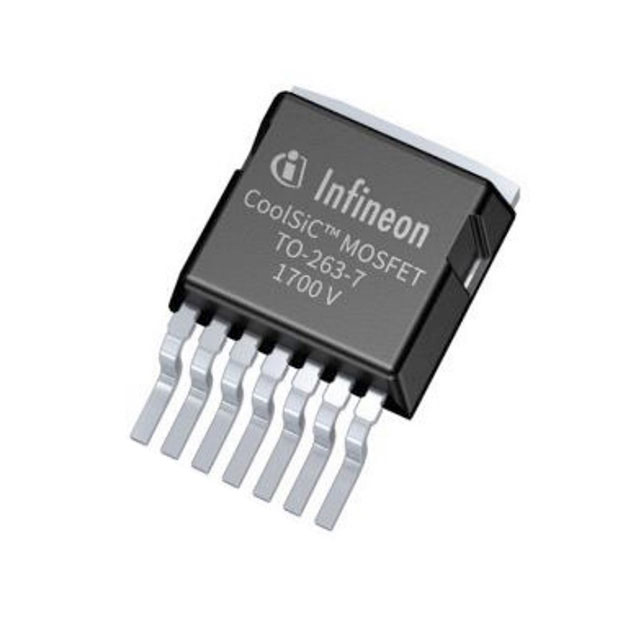

IMBF170R650M1XTMA1

Active

Infineon Technologies

SILICON CARBIDE MOSFET, SINGLE, N CHANNEL, 7.4 A, 1.7 KV, 0.526 OHM, TO-263 (D2PAK)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IMBF170R650M1XTMA1

Active

Infineon Technologies

SILICON CARBIDE MOSFET, SINGLE, N CHANNEL, 7.4 A, 1.7 KV, 0.526 OHM, TO-263 (D2PAK)

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMBF170R650M1XTMA1

Current - Continuous Drain (Id) @ 25°C	7.4 A
Drain to Source Voltage (Vdss)	1700 V
Drive Voltage (Max Rds On, Min Rds On)	15 V, 12 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	8 nC
Input Capacitance (Ciss) (Max) @ Vds	422 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA
Power Dissipation (Max) [Max]	88 W
Rds On (Max) @ Id, Vgs	650 mOhm
Supplier Device Package	PG-TO263-7-13
Vgs (Max) [Max]	20 V
Vgs (Max) [Min]	-10 V
Vgs(th) (Max) @ Id	5.7 V

IMBF170 Series

Part	Vgs(th) (Max) @ Id	Vgs (Max) [Max]	Vgs (Max) [Min]	Supplier Device Package	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)	FET Type	Package / Case	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs
Infineon Technologies IMBF170R450M1XTMA1	5.7 V	20 V	-10 V	PG-TO263-7-13	450 mOhm	11 nC	12 V 15 V	Surface Mount	-55 °C	175 ░C	107 W	N-Channel	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	1700 V
Infineon Technologies IMBF170R650M1XTMA1	5.7 V	20 V	-10 V	PG-TO263-7-13		8 nC	12 V 15 V	Surface Mount	-55 °C	175 ░C		N-Channel	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	1700 V	7.4 A	88 W	422 pF	650 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 5.34
		10	$ 3.70
		50	$ 3.55
		100	$ 2.84
		200	$ 2.83
Digikey	Cut Tape (CT)	1	$ 6.21
		10	$ 4.17
		100	$ 3.02
		500	$ 2.53
	Digi-Reel®	1	$ 6.21
		10	$ 4.17
		100	$ 3.02
		500	$ 2.53
	Tape & Reel (TR)	1000	$ 2.53
Newark	Each (Supplied on Cut Tape)	1	$ 5.63
		10	$ 3.90
		25	$ 3.74
		50	$ 3.31
		100	$ 2.86
		250	$ 2.63
		500	$ 2.39
		1000	$ 2.36

Description

General part information

IMBF170 Series

CoolSiC™ 1700 V, 650 mΩSiC MOSFETin a TO-263-7 high creepage package is optimized for fly-back topologies to be used in auxiliary power supplies connected to DC-link voltages 600 V up to 1000 V in numerous power applications.
