54025-06

Active

CnC Tech, LLC

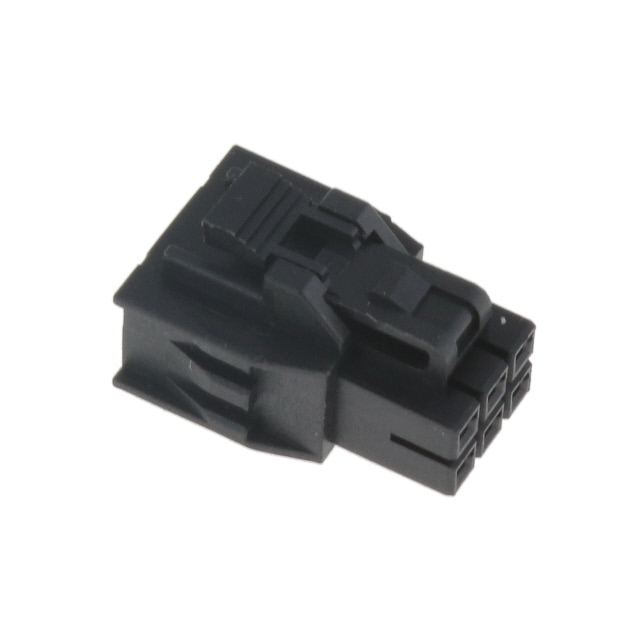

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

54025-06

Active

CnC Tech, LLC

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	54025-06

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA4T), Nylon 4T
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing	0.098 in
Row Spacing	2.5 mm

54025 Series

Part	Contact Length - Post	Contact Length - Post [x]	Shrouding	Contact Finish - Post	Number of Positions	Contact Material	Termination	Mounting Type	Voltage Rating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Insulation Material	Connector Type	Current Rating (Amps)	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Style	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Type	Contact Length - Post [x]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish	Pin or Socket	Type	Pitch [x]	Pitch [x]	Note	Row Spacing	Row Spacing	Color	Number of Positions
CnC Tech, LLC 54025-14-0200-01	3.2 mm	0.126 in	Shrouded - 4 Wall	Tin	14	Brass	Solder	Through Hole Right Angle	250 VAC	Black	0.098 in	2.5 mm	Latch Holder	Thermoplastic	Header	6.5 A	2	All	6.28 mm	0.247 in	UL94 V-0	2.5 mm	0.098 in	Board to Cable/Wire	Square	-40 °C	105 ░C	Board Guide	Male Pin
CnC Tech, LLC 54025-12-0100-01		0.134 in	Shrouded - 4 Wall	Tin	12	Brass	Kinked Pin Solder	Through Hole	250 VAC	Black	0.098 in	2.5 mm	Latch Holder	Thermoplastic	Header	6.5 A	2	All	9.07 mm	0.357 in	UL94 V-0	2.5 mm	0.098 in	Board to Cable/Wire	Square	-40 °C	105 ░C	Board Guide	Male Pin	3.4 mm
CnC Tech, LLC 54025-2426																															24 AWG	26 AWG	Crimp	Tin	Socket	Stamped
CnC Tech, LLC 54025-04					4			Free Hanging (In-Line)					Latch Lock	Polyamide (PA4T) Nylon 4T	Receptacle		2									-40 °C	105 ░C		Female Socket				Crimp				0.098 in	2.5 mm	Contacts Not Included	0.098 in	2.5 mm	Black
CnC Tech, LLC 54025-10					10			Free Hanging (In-Line)					Latch Lock	Polyamide (PA4T) Nylon 4T	Receptacle		2									-40 °C	105 ░C		Female Socket				Crimp				0.098 in	2.5 mm	Contacts Not Included	0.098 in	2.5 mm	Black
CnC Tech, LLC 54025-16-0200-01	3.2 mm	0.126 in	Shrouded - 4 Wall	Tin		Brass	Solder	Through Hole Right Angle	250 VAC	Black	0.098 in	2.5 mm	Latch Holder	Thermoplastic	Header	6.5 A	2	All	6.28 mm	0.247 in	UL94 V-0	2.5 mm	0.098 in	Board to Cable/Wire	Square	-40 °C	105 ░C	Board Guide	Male Pin														16
CnC Tech, LLC 54025-06					6			Free Hanging (In-Line)					Latch Lock	Polyamide (PA4T) Nylon 4T	Receptacle		2									-40 °C	105 ░C		Female Socket				Crimp				0.098 in	2.5 mm	Contacts Not Included	0.098 in	2.5 mm	Black
CnC Tech, LLC 54025-18					18			Free Hanging (In-Line)					Latch Lock	Polyamide (PA4T) Nylon 4T	Receptacle		2									-40 °C	105 ░C		Female Socket				Crimp				0.098 in	2.5 mm	Contacts Not Included	0.098 in	2.5 mm	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.26
		10	$ 0.22
		25	$ 0.20
		50	$ 0.18
		100	$ 0.17
		250	$ 0.16
		500	$ 0.15
		1000	$ 0.13

Description

General part information

54025 Series

6 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
