54025-10

Active

CnC Tech, LLC

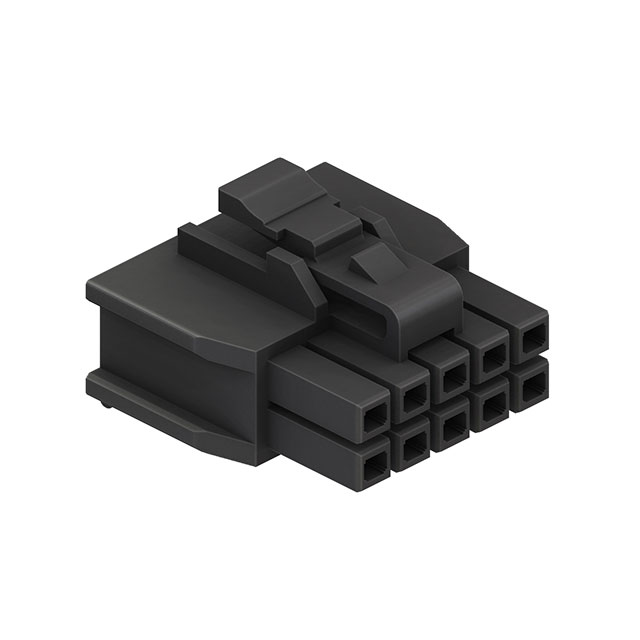

CONN RCPT HSG 10POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

54025-10

Active

CnC Tech, LLC

CONN RCPT HSG 10POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	54025-10

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA4T), Nylon 4T
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing	0.098 in
Row Spacing	2.5 mm

54025 Series

Part	Contact Length - Post	Contact Length - Post [x]	Shrouding	Contact Finish - Post	Number of Positions	Contact Material	Termination	Mounting Type	Voltage Rating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Insulation Material	Connector Type	Current Rating (Amps)	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Style	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Type	Contact Length - Post [x]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish	Pin or Socket	Type	Pitch [x]	Pitch [x]	Note	Row Spacing	Row Spacing	Color	Number of Positions
CnC Tech, LLC 54025-14-0200-01	3.2 mm	0.126 in	Shrouded - 4 Wall	Tin	14	Brass	Solder	Through Hole Right Angle	250 VAC	Black	0.098 in	2.5 mm	Latch Holder	Thermoplastic	Header	6.5 A	2	All	6.28 mm	0.247 in	UL94 V-0	2.5 mm	0.098 in	Board to Cable/Wire	Square	-40 °C	105 ░C	Board Guide	Male Pin
CnC Tech, LLC 54025-12-0100-01		0.134 in	Shrouded - 4 Wall	Tin	12	Brass	Kinked Pin Solder	Through Hole	250 VAC	Black	0.098 in	2.5 mm	Latch Holder	Thermoplastic	Header	6.5 A	2	All	9.07 mm	0.357 in	UL94 V-0	2.5 mm	0.098 in	Board to Cable/Wire	Square	-40 °C	105 ░C	Board Guide	Male Pin	3.4 mm
CnC Tech, LLC 54025-2426																															24 AWG	26 AWG	Crimp	Tin	Socket	Stamped
CnC Tech, LLC 54025-04					4			Free Hanging (In-Line)					Latch Lock	Polyamide (PA4T) Nylon 4T	Receptacle		2									-40 °C	105 ░C		Female Socket				Crimp				0.098 in	2.5 mm	Contacts Not Included	0.098 in	2.5 mm	Black
CnC Tech, LLC 54025-10					10			Free Hanging (In-Line)					Latch Lock	Polyamide (PA4T) Nylon 4T	Receptacle		2									-40 °C	105 ░C		Female Socket				Crimp				0.098 in	2.5 mm	Contacts Not Included	0.098 in	2.5 mm	Black
CnC Tech, LLC 54025-16-0200-01	3.2 mm	0.126 in	Shrouded - 4 Wall	Tin		Brass	Solder	Through Hole Right Angle	250 VAC	Black	0.098 in	2.5 mm	Latch Holder	Thermoplastic	Header	6.5 A	2	All	6.28 mm	0.247 in	UL94 V-0	2.5 mm	0.098 in	Board to Cable/Wire	Square	-40 °C	105 ░C	Board Guide	Male Pin														16
CnC Tech, LLC 54025-06					6			Free Hanging (In-Line)					Latch Lock	Polyamide (PA4T) Nylon 4T	Receptacle		2									-40 °C	105 ░C		Female Socket				Crimp				0.098 in	2.5 mm	Contacts Not Included	0.098 in	2.5 mm	Black
CnC Tech, LLC 54025-18					18			Free Hanging (In-Line)					Latch Lock	Polyamide (PA4T) Nylon 4T	Receptacle		2									-40 °C	105 ░C		Female Socket				Crimp				0.098 in	2.5 mm	Contacts Not Included	0.098 in	2.5 mm	Black
