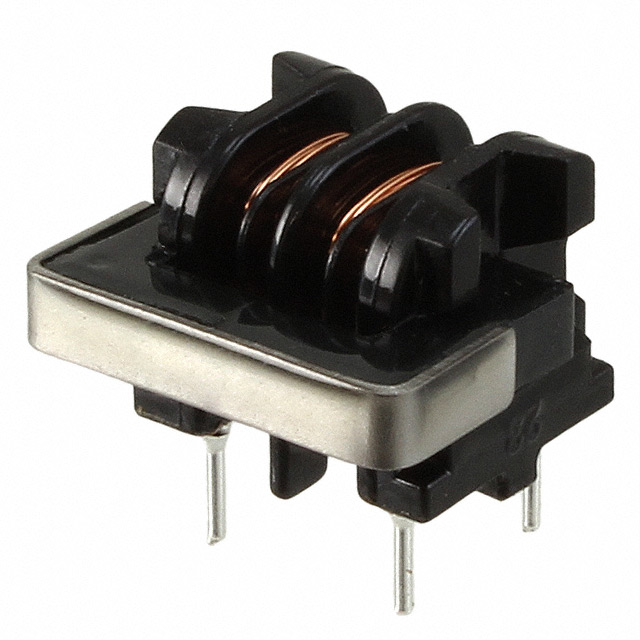

SU9HF-05050

Active

KEMET

COMMON MODE FILTER, 5MH, 0.5A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

COMMON MODE FILTER, 5MH, 0.5A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Max) [Max]	Number of Lines	Filter Type	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Package / Case	Package / Case	Mounting Type	DC Resistance (DCR) (Max) [Max]
KEMET SU9HF-03060	300 mA	2	Power Line	250 V	17 mm	0.61 in	0.669 "	15.5 mm	120 °C	-25 °C	12 mm	0.472 in	1 kHz 6 mH	4 Lead	Vertical	Through Hole	2 Ohm
KEMET SU9HF-05030	500 mA	2	Power Line	250 V	17 mm	0.61 in	0.669 "	15.5 mm	120 °C	-25 °C	12 mm	0.472 in	3 mH	4 Lead	Vertical	Through Hole	1 Ohm
KEMET SU9HF-05050	500 mA	2	Power Line	250 V	17 mm	0.61 in	0.669 "	15.5 mm	120 °C	-25 °C	12 mm	0.472 in	5 mH	4 Lead	Vertical	Through Hole	1.3 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1.3Ohm
