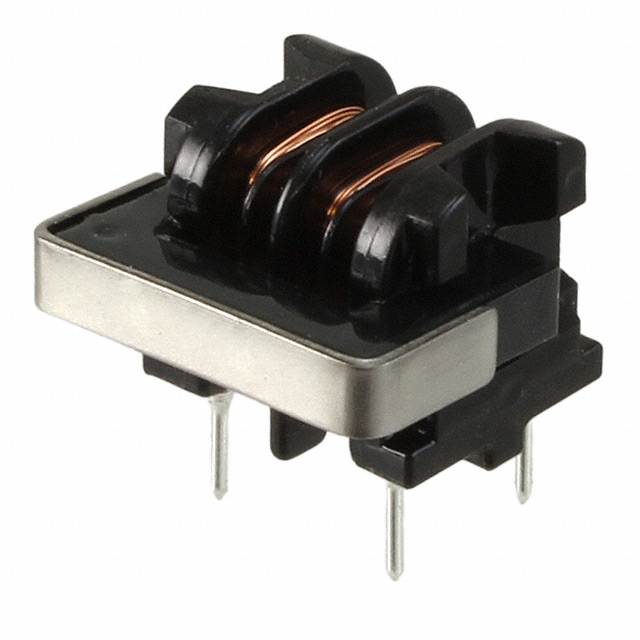

SU9HF-03060

Active

KEMET

CMC 6MH 300MA 2LN TH

Search across all available documentation for this part.

Active

KEMET

CMC 6MH 300MA 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Max) [Max]	Number of Lines	Filter Type	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Package / Case	Package / Case	Mounting Type	DC Resistance (DCR) (Max) [Max]
KEMET SU9HF-03060	300 mA	2	Power Line	250 V	17 mm	0.61 in	0.669 "	15.5 mm	120 °C	-25 °C	12 mm	0.472 in	1 kHz 6 mH	4 Lead	Vertical	Through Hole	2 Ohm
KEMET SU9HF-05030	500 mA	2	Power Line	250 V	17 mm	0.61 in	0.669 "	15.5 mm	120 °C	-25 °C	12 mm	0.472 in	3 mH	4 Lead	Vertical	Through Hole	1 Ohm
KEMET SU9HF-05050	500 mA	2	Power Line	250 V	17 mm	0.61 in	0.669 "	15.5 mm	120 °C	-25 °C	12 mm	0.472 in	5 mH	4 Lead	Vertical	Through Hole	1.3 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 300mA DCR 2Ohm
