399-10-102-10-009000

Active

Mill-Max Manufacturing Corp.

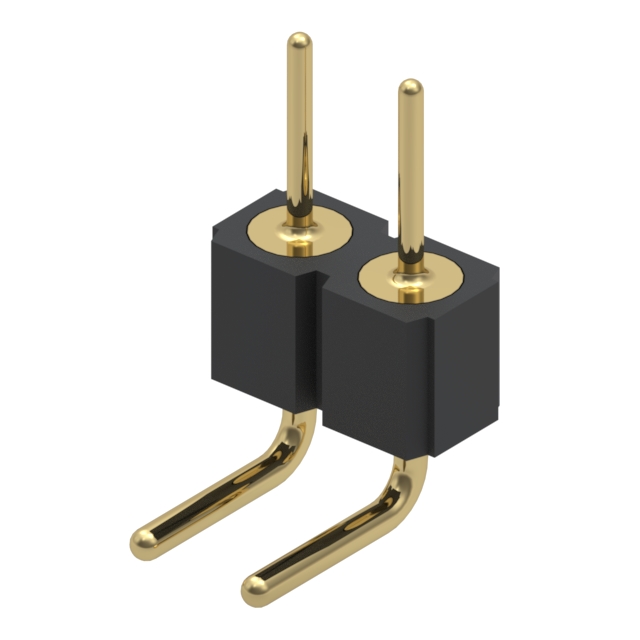

CONN HEADER RA 2 PIN .100" PITCH

Deep-Dive with AI

Search across all available documentation for this part.

399-10-102-10-009000

Active

Mill-Max Manufacturing Corp.

CONN HEADER RA 2 PIN .100" PITCH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	399-10-102-10-009000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

399-10 Series

...

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Number of Contacts	Mounting Type	Material	Contact Shape	Termination	Number of Positions Loaded	Insulation Color	Fastening Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Material	Contact Finish - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Finish - Post	Contact Type	Contact Length - Post	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating
Mill-Max Manufacturing Corp. 399-10-127-10-008000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	27	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-103-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	3	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-141-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	41	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-120-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target		Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-112-10-008000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	12	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-102-10-009000	1						Header		Through Hole Right Angle		Circular	Solder	All	Black	Push-Pull	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Brass Alloy	Gold	2	4 mm	0.157 in	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Male Pin	3.2 mm	0.126 in	10 çin	0.25 çm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 399-10-161-10-008000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	61	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-126-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	26	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-147-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	47	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-101-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	1	Through Hole Right Angle	Brass Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 9.09

Description

General part information

399-10 Series

Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
