399-10-112-10-008000

Active

Mill-Max Manufacturing Corp.

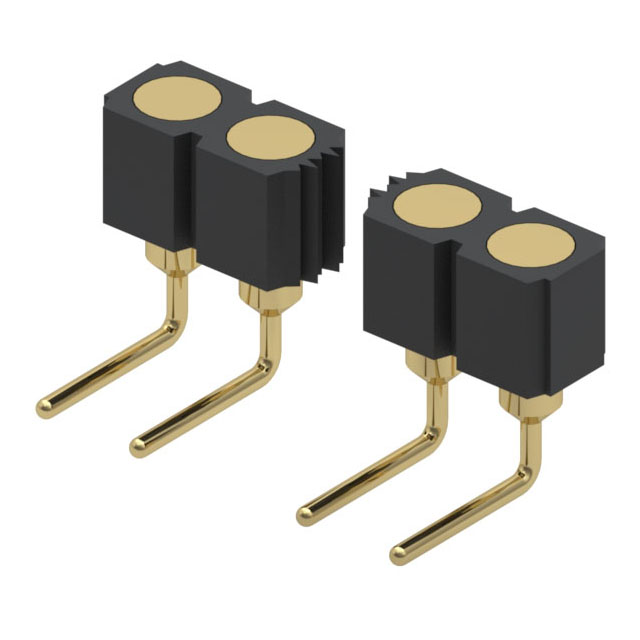

CONN SPRING TARGET 12POS R/A PCB

Deep-Dive with AI

Search across all available documentation for this part.

399-10-112-10-008000

Active

Mill-Max Manufacturing Corp.

CONN SPRING TARGET 12POS R/A PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	399-10-112-10-008000

Connector Type	Mating Target
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material	Brass Alloy
Mounting Type	Through Hole, Right Angle
Number of Contacts	12
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

399-10 Series

...

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Number of Contacts	Mounting Type	Material	Contact Shape	Termination	Number of Positions Loaded	Insulation Color	Fastening Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Material	Contact Finish - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Finish - Post	Contact Type	Contact Length - Post	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating
Mill-Max Manufacturing Corp. 399-10-127-10-008000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	27	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-103-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	3	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-141-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	41	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-120-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target		Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-112-10-008000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	12	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-102-10-009000	1						Header		Through Hole Right Angle		Circular	Solder	All	Black	Push-Pull	Unshrouded	10 çin	0.25 çm	0.1 in	2.54 mm	Brass Alloy	Gold	2	4 mm	0.157 in	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Male Pin	3.2 mm	0.126 in	10 çin	0.25 çm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 399-10-161-10-008000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	61	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-126-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	26	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-147-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	47	Through Hole Right Angle	Brass Alloy
Mill-Max Manufacturing Corp. 399-10-101-10-007000	1	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Mating Target	1	Through Hole Right Angle	Brass Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.51
		10	$ 4.09
		100	$ 3.61
		500	$ 3.07
		1000	$ 2.62

Description

General part information

399-10 Series

12 Position Spring Mating Target Connector Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
