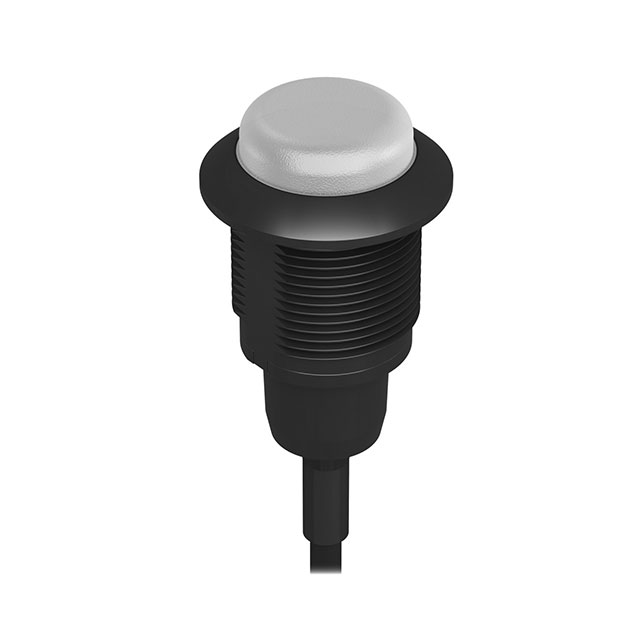

S18DLGRYP

Active

BANNER ENGINEERING

PANEL INDICATORS, MULTICOLOUR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PANEL INDICATORS, MULTICOLOUR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Panel Cutout Dimensions	Panel Cutout Dimensions	Current	Ingress Protection	Millicandela Rating [custom]	Millicandela Rating [custom]	Termination Style	Lamp Color	Voltage [Max]	Voltage [Min]	Type	Ratings	Panel Cutout Shape	Millicandela Rating	Wavelength - Peak	Lens Size [diameter]	Wavelength - Peak [custom]	Wavelength - Peak [custom]
BANNER ENGINEERING S18DLGRXPQ	Diffused	0.709 in	18 mm	25 mA	IP67 IP69K NEMA 4X	2.3 mcd	1.4 mcd	Quick Connect	Green Red	30 V	10 V	LED	DC	Round
BANNER ENGINEERING S18DLGRYPQ	Diffused	0.709 in	18 mm	25 mA	IP67 IP69K NEMA 4X			Quick Connect	Green Red Yellow	30 V	10 V	LED	DC	Round	1.2 mcd 1.4 mcd 2.3 mcd
BANNER ENGINEERING S18DLOXXPQ				25 mA	IP67 IP69K				Orange	30 V	10 V	LED	DC			608 nm	16 mm
BANNER ENGINEERING S18DLGRYPT	Clear	0.71 "	18 mm	25 mA	IP67 IP69K NEMA 4X			Screw Terminal	Green Red Yellow	30 V	10 V	LED	DC	Round	1.2 mcd 1.4 mcd 2.3 mcd
BANNER ENGINEERING S18DLRBWPT				25 mA	IP67 IP69K			Screw Terminal	Blue Red White	30 V	10 V	LED	DC				16 mm	625 nm	470 nm
BANNER ENGINEERING S18DLGRYP	Diffused	0.709 in	18 mm	25 mA	IP67 IP69K NEMA 4X			Wire Leads	Green Red Yellow	30 V	10 V	LED	DC	Round	1.2 mcd 1.4 mcd 2.3 mcd
BANNER ENGINEERING S18DLWXXP				25 mA	IP67 IP69K				White	30 V	10 V	LED	DC				16 mm
BANNER ENGINEERING S18DLHWQ	Diffused	0.709 in	18 mm	60 mA	IP67 IP69K NEMA 4X			Quick Connect		30 V	9 V	LED	DC	Round	20 mcd
BANNER ENGINEERING S18DLOXXPT				25 mA	IP67 IP69K			Screw Terminal	Orange	30 V	10 V	LED	DC			608 nm	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00
Newark	Each	1	$ 71.91

General part information

LED Panel Indicator Green, Red, Yellow Diffused 10V ~ 30V 25mA Wire Leads
